数据与计算发展前沿 ›› 2025, Vol. 7 ›› Issue (6): 149-157.

CSTR: 32002.14.jfdc.CN10-1649/TP.2025.06.014

doi: 10.11871/jfdc.issn.2096-742X.2025.06.014

• 技术与应用 • 上一篇    下一篇

基于数字水印的设施农业物联网数据确权方法研究

王一罡(),谭雅蓉*(),刘新,平阳,秦晓婧,胡雁翔,张莲莲,李乾川,于金莹

  1. 北京市农林科学院数据科学与农业经济研究所，北京 100097
  • 收稿日期:2025-06-25 出版日期:2025-12-20 发布日期:2025-12-17
  • 通讯作者: 谭雅蓉
  • 作者简介:王一罡，北京农学院农业信息化专业，硕士研究生。工作单位为北京市农林科学院数据科学与农业经济研究所，助理研究员。研究方向为农业大数据。
    本文主要工作为开展实验和论文撰写。
    WANG Yigang is a master’s sdudent majoring in Agricultural Informatization at Beijing University of Agriculture. He works as an assistant researcher at the Institute of Data Science and Agricultural Economics of the Beijing Academy of Agriculture and Forestry Sciences. His research focuses on agricultural big data.
    In this paper, he is mainly responsible for conducting experiments and writing the manuscript.
    E-mail: wangyg@agri.ac.cn|谭雅蓉，北京农学院农村与区域发展专业，硕士研究生。工作单位为北京市农林科学院数据科学与农业经济研究所，助理研究员。研究方向为农业信息化、数字乡村创新路径研究等。
    本文主要工作为参与项目实施。
    TAN Yarong, a master’s sdudent in Rural and Regional Development from Beijing University of Agriculture, is currently working as an assistant researcher at the Institute of Data Science and Agricultural Economics of the Beijing Academy of Agriculture and Forestry Sciences. Her research focuses on agricultural informatization and innovative pathways for digital rural development.
    In this paper, he is mainly responsible for participation in project implementation.
    E-mail: tanyarong@baafs.net.cn
  • 基金资助:
    北京市农林科学院青年基金项目：“农业隐私数据共享模型研究——以北京设施蔬菜产业为例”(QNJJ202328)

Research on Data Ownership Confirmation Method for Facility Agriculture IoT Based on Digital Watermarking

WANG Yigang(),TAN Yarong*(),LIU Xin,PING Yang,QIN Xiaojing,HU Yanxiang,ZHANG Lianlian,LI Qianchuan,YU Jinying

  1. Institute of Data Science and Agricultural Economics, Beijing Academy of Agriculture and Forestry Sciences, Beijing 100097, China
  • Received:2025-06-25 Online:2025-12-20 Published:2025-12-17
  • Contact: TAN Yarong

RichHTML

1

PDF

0

摘要：

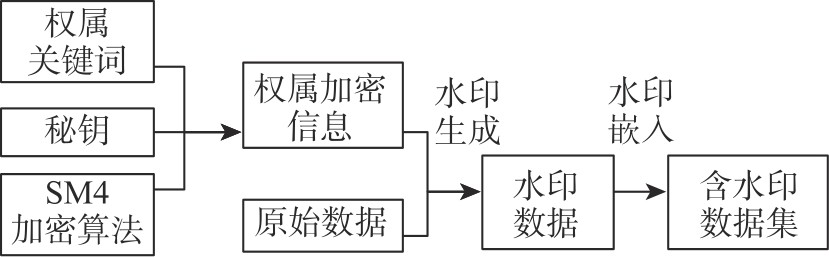

【目的】设施农业物联网数据作为农业生产、科学科研和农业政务监管等领域重要的数据要素，针对其权属复杂、难以溯源、易于窃取篡改等问题，设计基于数字水印的物联网数据确权方法。【方法】针对设施物联网网关设定权属数据，利用对称分组密码算法SM4生成对应的权属加密信息，根据权属加密信息，生成水印数据，并将水印数据嵌入到原始物联网数据中，实现设施农业物联网数据确权。【结果】提出的构建水印数据实现物联网数据确权方法，应用于物联网网关中并进行数据溯源，结果表明提出的物联网数据确权方法是有效的。【结论】基于数字水印的设施农业物联网数据确权方法可以有效解决物联网数据权属不明的问题，既能追溯数据的来源，同时也提高了设施农业物联网数据的安全性。

关键词: 数字水印, 数据确权, 设施农业, 物联网, SM4算法

Abstract:

[Objective] As a crucial data element in agricultural production, scientific research, and agricultural government supervision, facility agriculture IoT data faces issues such as complex ownership, difficulty in traceability, and vulnerability to theft and tampering. This study designs an IoT data ownership confirmation method based on digital watermarking to address these challenges. [Methods] The method involves setting ownership data for facility IoT gateways, generating corresponding encrypted ownership information using the symmetric block cipher algorithm SM4. Based on the encrypted ownership information, watermark data is created and embedded into the original IoT data to achieve ownership confirmation of facility agriculture IoT data. [Results] The proposed approach of constructing watermark data for IoT data ownership confirmation is applied to IoT gateways for data traceability. The results demonstrate that the proposed method for IoT data ownership confirmation is effective. [Conclusions] The facility agriculture IoT data ownership confirmation method based on digital watermarking can effectively solve the problem of unclear data ownership. It not only enables traceability of data sources, but also enhances the security of facility agriculture IoT data.

Key words: digital water marking, data rights confirmation, facility agriculture, Internet of Things, SM4 algorithm
