基于北斗观测值的智能手机GNSS定位研究

doi:10.11871/jfdc.issn.2096-742X.2022.04.009

数据与计算发展前沿 ›› 2022, Vol. 4 ›› Issue (4): 88-102.

CSTR: 32002.14.jfdc.CN10-1649/TP.2022.04.009

doi: 10.11871/jfdc.issn.2096-742X.2022.04.009

• 专刊：北斗导航数据处理 • 上一篇下一篇

基于北斗观测值的智能手机GNSS定位研究

徐黎^1,²(),袁运斌^1,^*()

1.中国科学院精密测量科学与技术创新研究院,大地测量与地球动力学国家重点实验室,湖北武汉 430071
2.中国科学院大学,北京 100049

收稿日期:2022-03-31 出版日期:2022-08-20 发布日期:2022-08-10
通讯作者: 袁运斌
作者简介:徐黎,中国科学院精密测量科学与技术创新研究院,博士研究生,主要研究方向为高精度GNSS数据处理。
本文中负责实验数据采集和分析,以及初稿撰写。
XU Li is a Ph.D. candidate at Innovation Academy for Precision Measurement Science and Technology, CAS. His research interests include high-precision GNSS data processing.
In this paper, he is responsible for experimental data collection and analysis and writing the draft.
E-mail: xuli@asch.whigg.ac.cn|袁运斌,中国科学院精密测量科学与技术创新研究院,研究员,主要研究方向为卫星导航大气延迟改正、精密定位定轨。
本文中负责提出想法并设计实验、修改论文。
YUAN Yunbin is a professor at Innovation Academy for Pre-cision Measurement Science and Technology, CAS. His main research interests include GNSS atmospheric delay correction, precise positioning and orbit determination.
In this paper, he proposed ideas, designed experiments, and revised drafts.
E-mail: yybgps@asch.whigg.ac.cn
基金资助:
湖北省自然科学基金(2020CFA048)

A Study of Smartphone GNSS Positioning Based on BDS Observations

XU Li^1,²(),YUAN Yunbin^1,^*()

1. State Key Laboratory of Geodesy and Earth's Dynamics, Innovation Academy for Precision Measurement Science and Technology, Chinese Academy of Sciences, Wuhan, Hubei 430071, China
2. University of Chinese Academy of Sciences, Beijing 100049, China

Received:2022-03-31 Online:2022-08-20 Published:2022-08-10
Contact: YUAN Yunbin

摘要/Abstract

摘要：

【目的】北斗卫星导航系统（Beidou Navigation Satellite System, BDS）由我国完全自主设计建造,是一项重要的国家空间基础设施,旨在为全球用户提供导航、定位与授时服务。当前,大众低成本智能设备卫星定位主要以美国全球定位系统（Global Positioning Systems, GPS）为主,北斗的出现能有效地减少对GPS的依赖。开展BDS在大众低成本智能设备,特别是智能手机上的应用研究,对发展北斗产业,服务经济社会和民生改善有着重要意义。【方法】本文选用了华为公司新发布的华为Mate40、Mate30、P40和P30智能手机,与同时采集的GPS数据进行了对比,采用伪距相位无几何组合法,分析了北斗在中国区域的智能手机终端原始观测值的数据质量,并采用标准单点定位和实时伪距差分定位方法,分析了静态、低速动态、中高速动态和高速动态场景下的定位表现。【结果】结果显示：中国区域内智能手机跟踪的BDS卫星数、观测噪声以及定位表现均优于GPS。【结论】表明我国自主研制的BDS系统能为大众用户低成本设备提供更优质的定位服务。

关键词: 安卓智能手机, 全球导航卫星系统, 北斗卫星导航系统, 单点定位, 实时伪距差分

Abstract:

[Objective] The Beidou navigation satellite system (BDS) is an essential national space infrastructure designed and built entirely by China. It aims to provide navigation, positioning, and timing services for users worldwide. At present, the mass low-cost intelligent equipment satellite positioning is mainly based on the US's Global Positioning Systems (GPS). The emergence of BDS can effectively reduce the dependence on GPS. Research on the application of BDS in low-cost smart devices, especially smartphones, is of great significance for the BDS industry development, economic and social services, and improvement of people's livelihood. [Methods] In this study, the quality of the raw BDS observations of the smartphones from Huawei Mate40, Mate30, P40, and P30 in the region of China was analyzed by comparing with the GPS data collected simultaneously by code minus carrier method and the positioning performance under static, low speed, medium speed, and high-speed dynamic scenarios is evaluated using single point positioning and real-time kinematic pseudo-range difference method. [Results] The results show that the number of viewed satellites, observation noise, and positioning performance of BDS satellites tracked by smartphones in China is better than that of GPS. [Conclusions] Finally, it can demonstrate that the BDS system developed by China could provide better positioning services for low-cost equipment for mass users.

Key words: android smartphone, global navigation satellite system, BeiDou navigation satellite system, single point positioning, real-time kinematic pseudo-range difference

徐黎,袁运斌. 基于北斗观测值的智能手机GNSS定位研究[J]. 数据与计算发展前沿, 2022, 4(4): 88-102.

XU Li,YUAN Yunbin. A Study of Smartphone GNSS Positioning Based on BDS Observations[J]. Frontiers of Data and Computing, 2022, 4(4): 88-102, https://cstr.cn/32002.14.jfdc.CN10-1649/TP.2022.04.009.

图/表 15

表1

图1

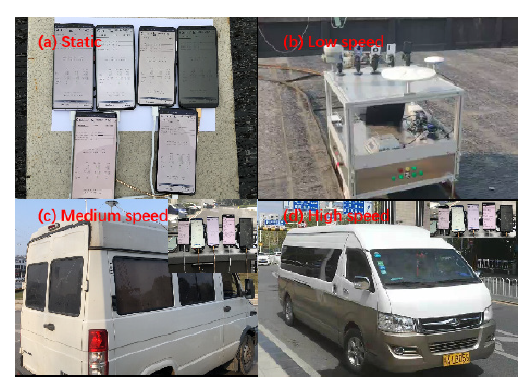

图2

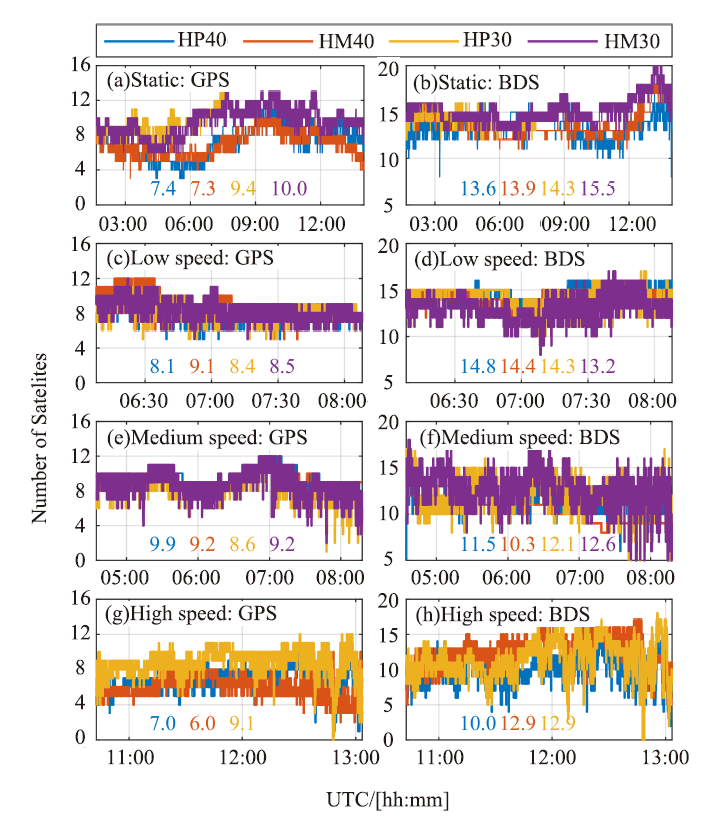

图3

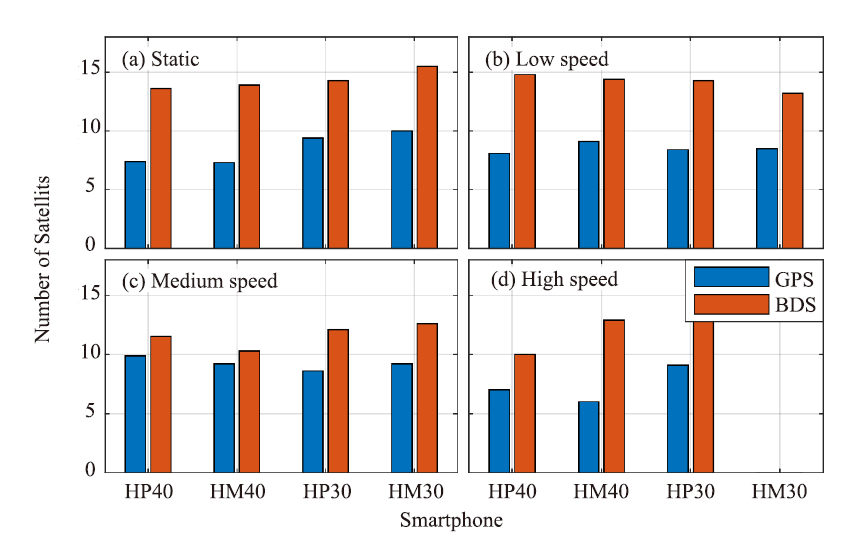

图4

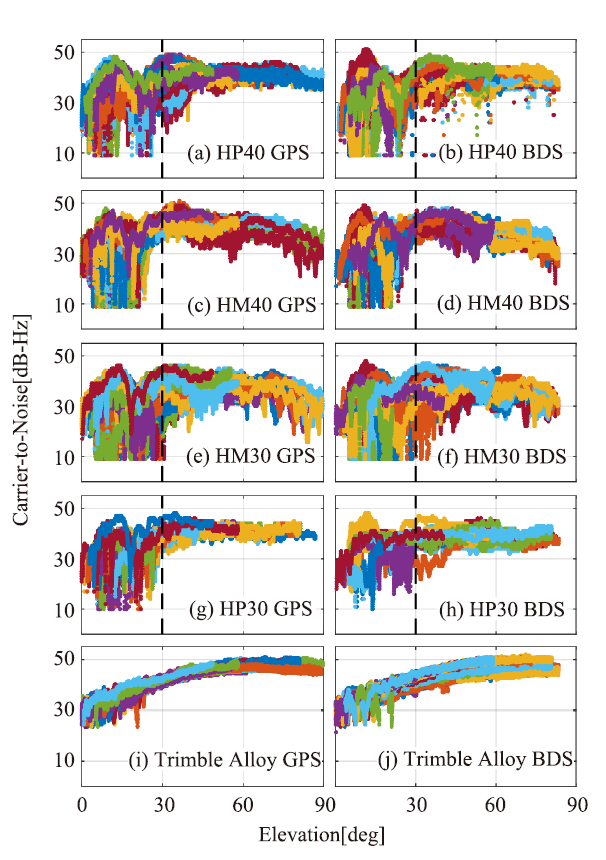

图5

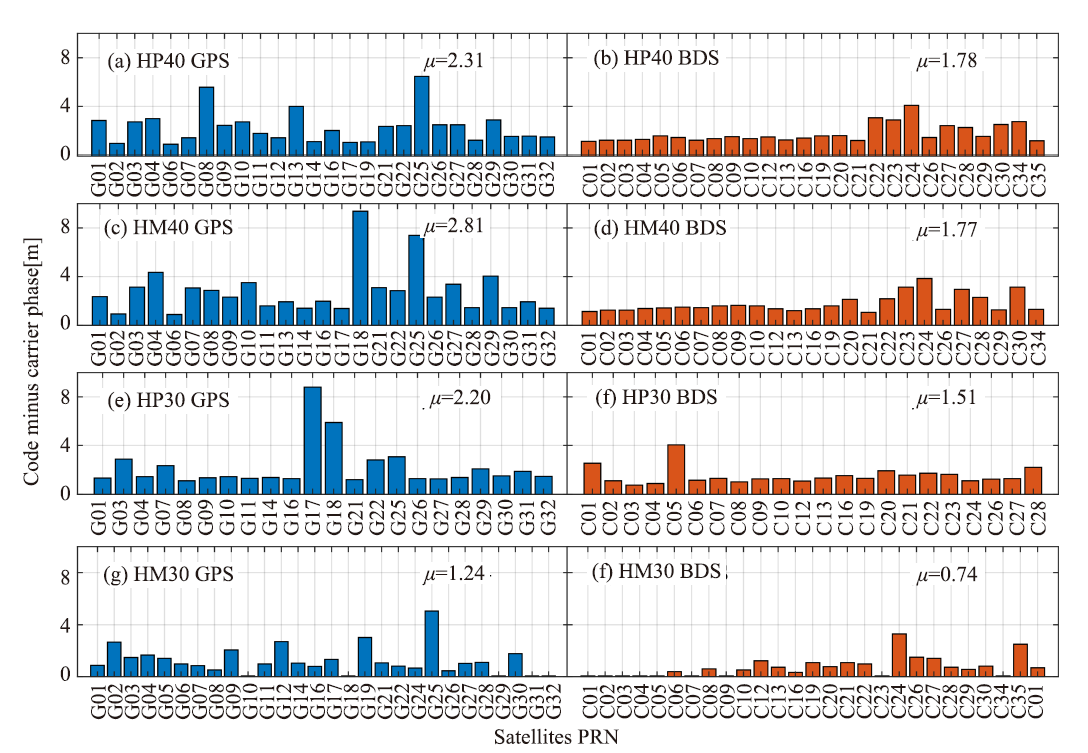

图6

表2

图7

图8

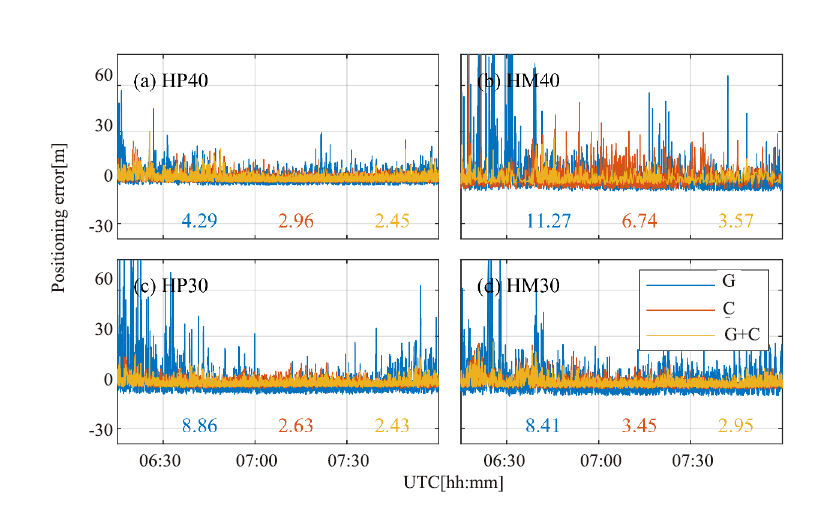

图9

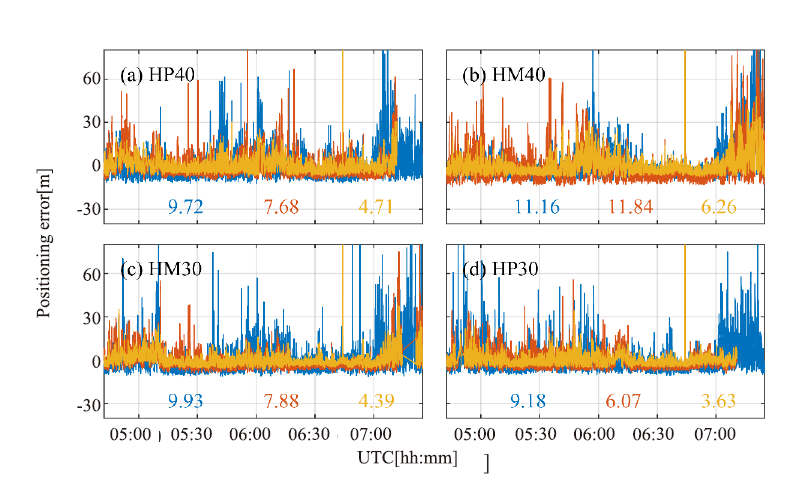

图10

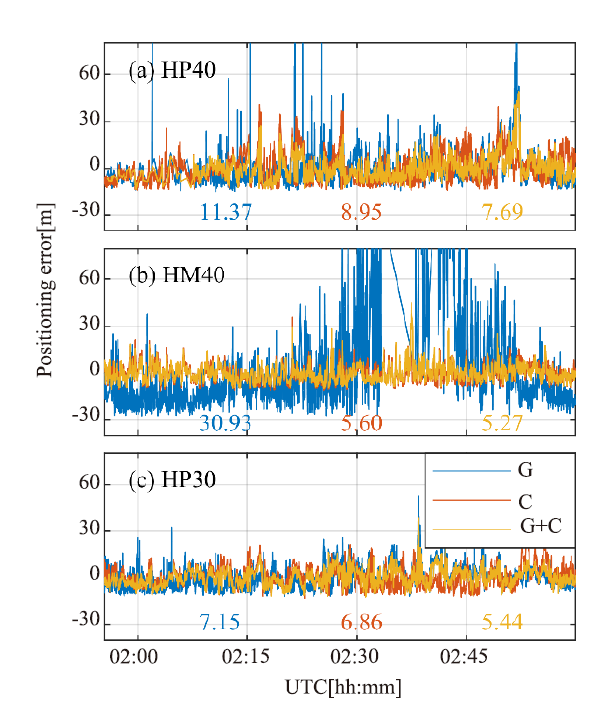

图11

图12

图13

参考文献 22

[1]	YANG Y, GAO W, GUO S, et al. Introduction to BeiD-ou-3 navigation satellite system[J]. Navigation, 2019, 66 (1): 7-18. doi: 10.1002/navi.291
[2]	YANG Y, XU Y, LI J L, et al. Progress and performance evaluation of BeiDou global navigation satellite system: Data analysis based on BDS-3 demonstration system[J]. Science China Earth Sciences, 2018, 61(005):614-624. doi: 10.1007/s11430-017-9186-9
[3]	YANG Y, MAO Y, SUN B. Basic performance and future developments of BeiDou global navigation satellite sys-tem[J]. Satellite Navigation, 2020, 1(1):1. doi: 10.1186/s43020-019-0006-0
[4]	YANG Y, LIU L, LI J, et al. Featured services and perfor-mance of BDS-3[J]. Science Bulletin, 2021, 66 (20): 2135-2143. doi: 10.1016/j.scib.2021.06.013
[5]	杨元喜. 弹性PNT基本框架[J]. 测绘学报, 2018, 47(7): 893-898.
[6]	杨元喜. 综合PNT体系及其关键技术[J]. 测绘学报, 2016, 45(5):505-510.
[7]	ZHANG X, TAO X, ZHU F, et al. Quality assessment of GNSS observations from an Android N smartphone and positioning performance analysis using time-differenced filtering approach[J/OL]. GPS Solutions, 2018, 22(3), https://link.springer.com/article/10.1007/s10291-018-0736-8.
[8]	PAZIEWSKI J D. Recent advances and perspectives for positioning and applications with smartphone GNSS observations[J]. Measurement Science and Technology, 2020, 31(9): 091001. doi: 10.1088/1361-6501/ab8a7d
[9]	HÅKANSSON M. Characterization of GNSS obser-vations from a Nexus 9 Android tablet[J/OL]. GPS Sol-utions, 2019, 23(1), https://link.springer.com/article/10.1007/s10291-018-0818-7.
[10]	PAZIEWSKI J, FORTUNATO M, MAZZONI A, et al. An analysis of multi-GNSS observations tracked by recent Android smartphones and smartphone-only rela-tive positioning results[J]. Measurement, 2021, 175: 109162. doi: 10.1016/j.measurement.2021.109162
[11]	LI G, GENG J. Characteristics of raw multi-GNSS mea-surement error from Google Android smart devices[J/OL]. GPS Solutions, 2019, 23(3), https://link.springer.com/article/10.1007/s10291-019-0885-4.
[12]	MASSARWEH L, FORTUNATO M, GIOIA C. Asse-ssment of Real-time Multipath Detection with Android Raw GNSS Measurements by Using a Xiaomi Mi 8 Sm-artphone[C]// 2020 IEEE/ION Position, Location and Na-vigation Symposium (PLANS), IEEE, 2020:1111-1122.
[13]	LIU W, SHI X, ZHU F, et al. Quality analysis of multi-GNSS raw observations and a velocity-aided positioning approach based on smartphones[J]. Advances in Space Research, 2019, 63(8):2358-2377. doi: 10.1016/j.asr.2019.01.004
[14]	PAZIEWSKI J, SIERADZKI R, BARYLA R. Signal characterization and assessment of code GNSS positi-oning with low-power consumption smartphones[J]. GPS Solutions, 2019, 23(4):1-12. doi: 10.1007/s10291-018-0792-0
[15]	GENG J, LI G. On the feasibility of resolving Android GNSS carrier-phase ambiguities[J]. Journal of Geodesy, 2019, 93(12):2621-2635. doi: 10.1007/s00190-019-01323-0
[16]	GAO R, XU L, ZHANG B, et al. Raw GNSS observat-ions from Android smartphones: characteristics and short-baseline RTK positioning performance[J]. Measure-ment Science and Technology, 2021, 32 (8): 084012.
[17]	WANNINGER L, HEELBARTH A. GNSS code and carrier phase observations of a Huawei P30 smartphone: quality assessment and centimeter-accurate positioning[J/OL]. GPS Solutions, 2020, 24(2), https://link.springer.com/article/10.1007/s10291-020-00978-z.
[18]	DARUGNA F, WÜBBENA J B, WÜBBENA G, et al. Impact of robot antenna calibration on dual-frequency smartphone-based high-accuracy positioning: a case study using the Huawei Mate20X[J]. GPS Solutions, 2021, 25(1):1-12. doi: 10.1007/s10291-020-01037-3
[19]	BAKKER P F, MAREL H, TIBERIUS C C. Geometry-free undifferenced, single and double differenced analysis of single frequency GPS, EGNOS and GIOVE-A/B mea-surements[J]. GPS SOLUTIONS, 2009, 13(10):305-314. doi: 10.1007/s10291-009-0123-6
[20]	KUUSNIEMI H, WIESER A, LACHAPELLE G, et al. User-level reliability monitoring in urban personal satellite-navigation[J]. IEEE Transactions on Aerospace & Electronic Systems, 2007, 43(4):1305-1318.
[21]	Geo++ GmbH. Geo++ RINEX Logger (version:2.1.6) [CP]. 2020. https://play.google.com/store/apps/details?-id=de.geopp.rinexlogger&hl=zh.
[22]	WANG L, LI Z, WANG N, et al. Real-time GNSS prec-ise point positioning for low-cost smart devices[J/OL]. GPS Solutions, 2021, 25(2), https://link.springer.com/article/10.1007/s10291-021-01106-1.

名称	处理器	GNSS芯片	卫星跟踪
HP30	麒麟980	Hi1103	G(L1+L5)/R(G1)/E(E1+E5a)/C(B1I)/J(L1+L5)
HM30	麒麟990	Hi1105	G(L1+L5)/R(G1)/E(E1+E5a)/C(B1I)/J(L1+L5)
HP40	麒麟990	Hi1105	G(L1+L5)/R(G1)/E(E1+E5a)/C(B1I+B1C+B2a)/J(L1+L5)
HM40	麒麟9000	Hi1105	G(L1+L5)/R(G1)/E(E1+E5a)/C(B1I+B1C+B2a+B2b)/J(L1+L5)

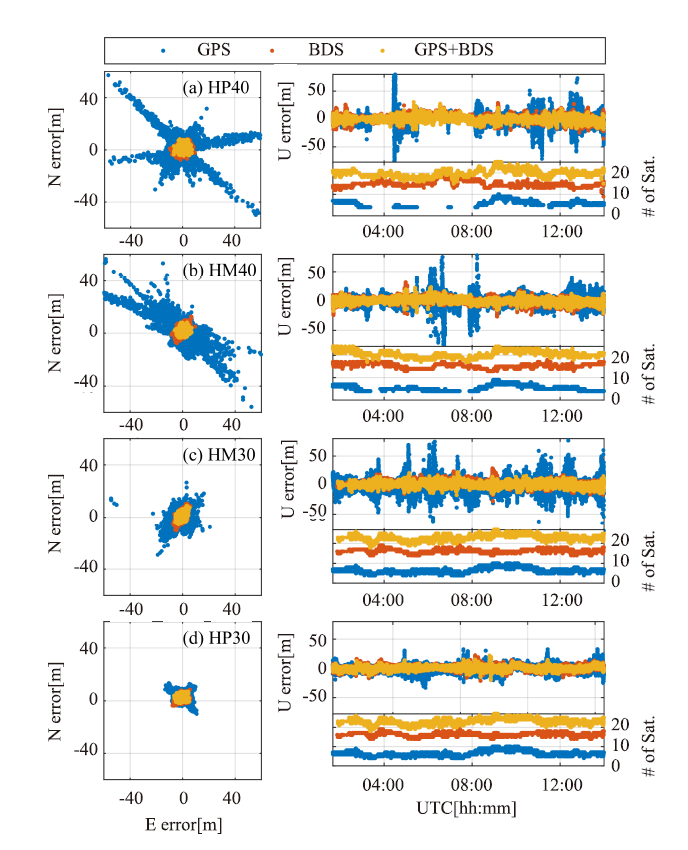

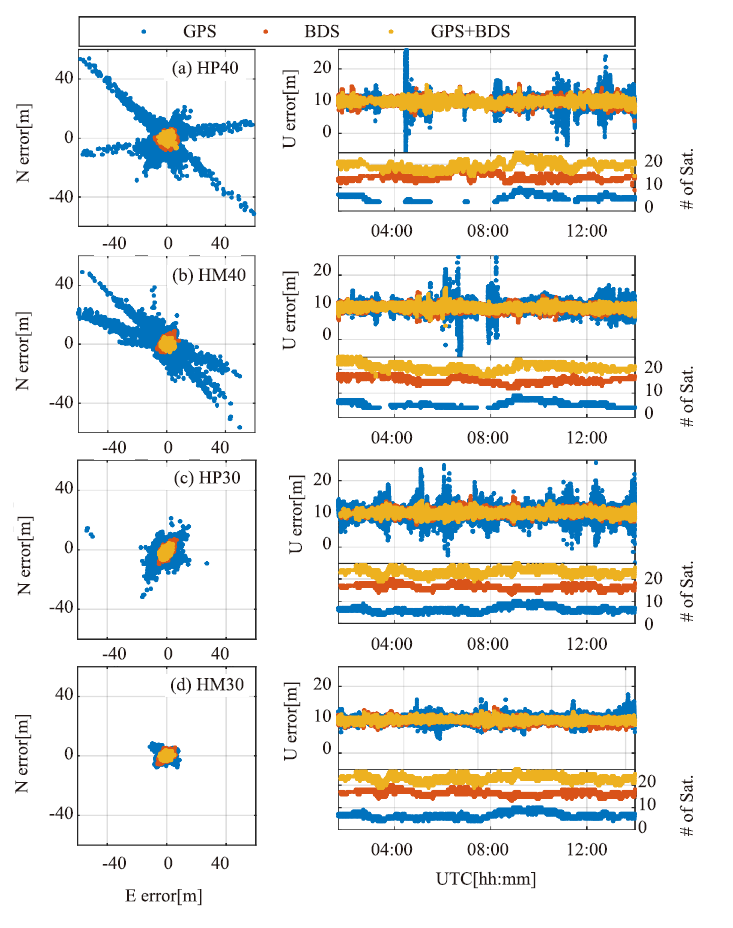

		SPP				RTD
		北	东	天	平面	北	东	天	平面
HP40	G	5.75	6.51	10.41	8.68	5.49	6.36	9.72	8.40
	C	2.05	2.08	5.61	2.92	1.10	1.56	4.48	1.91
	GC	2.28	1.65	4.51	2.81	0.94	1.29	3.69	1.60
HM40	G	11.39	13.47	9.83	17.64	11.16	13.75	9.72	17.71
	C	2.44	1.71	4.46	2.98	1.20	1.27	3.91	1.74
	GC	2.22	1.38	3.74	2.61	0.94	1.01	3.19	1.38
HP30	G	3.68	2.19	5.91	4.28	1.57	1.78	5.31	2.38
	C	2.48	1.42	4.18	2.85	1.15	1.16	3.91	1.63
	GC	2.75	1.28	3.41	3.03	0.80	0.95	2.69	1.24
HM30	G	3.29	2.72	10.02	4.27	2.66	2.35	9.12	3.55
	C	1.80	1.33	4.97	2.24	1.81	1.14	4.09	2.13
	GC	1.85	1.24	4.17	2.22	1.51	1.00	3.70	1.81
