地球系统模式CAS-ESM

doi:10.11871/jfdc.issn.2096-742X.2020.01.004

数据与计算发展前沿 ›› 2020, Vol. 2 ›› Issue (1): 38-54.

doi: 10.11871/jfdc.issn.2096-742X.2020.01.004

所属专题： “高性能与高通量计算及应用”专刊

• 专刊:高性能与高通量计算及应用 • 上一篇下一篇

地球系统模式CAS-ESM

周广庆^1,^*(),张云泉²,姜金荣³,张贺¹,吴保东²,曹杭²,王天一³,郝卉群³,朱家文¹,袁良²,张明华^1,^*()

1. 中国科学院大气物理研究所,北京 100029
2. 中国科学院计算技术研究所,北京 100190
3. 中国科学院计算机网络信息中心,北京 100190

收稿日期:2020-01-03 出版日期:2020-02-20 发布日期:2020-03-28
通讯作者: 周广庆,张明华
作者简介:周广庆,中国科学院大气物理研究所,研究员,博士生导师,主要研究方向为气候模式与气候预测。
本文承担工作：CAS-ESM气候系统模式设计研发。
Zhou Guangqing, professor, is a PhD supervisor at Institute of Atmospheric Physics, Chinese Academy of Sciences. His main research interests are climate model and climate predictions.
The tasks in this paper: design and development of climate system model in CAS-ESM.|张云泉,中国科学院计算技术研究所计算机体系结构国家重点实验室,博士,研究员,博士生导师,国家超级计算济南中心主任,主要研究领域为并行算法与并行软件。
本文承担工作：大气模式三维剖分方法整体设计。
Zhang Yunquan, is a professor and PhD Advisor of SKL of Computer Architecture, Institute of Computing Technology, Chinese Academy of Sciences in Beijing, China. He is also appointed as the Director of National Supercomputing Center at Jinan.
The tasks in this paper: 3d design of AGCM.
E-mail: zyq@ict.ac.cn。|姜金荣,中国科学院计算机网络信息中心,研究员,博士,主要研究方向为并行算法与框架软件、计算地球科学。
本文承担工作：耦合集成软件平台设计。
Jiang Jinrong is a research fellow in Computer Network Information Center, Chinese Academy of Sciences. His research interests include the development of earth system model, parallel computing and computer architecture.
The tasks in this paper: design the platform for coupling and application of Earth System Model.
E-mail: jjr@sccas.cn|张贺,中国科学院大气物理研究所,副研究员,主要研究方向为地球系统模式研发和应用。
本文承担工作：大气模式和耦合模式研发及CMIP6试验。
Zhang He is an asociate professor at Institute of Atmospheric Physics, Chinese Academy of Sciences,. His main research interests are Earth System Model development and applications.
The tasks in this paper: developments of AGCM and coupled model, CMIP6 experiments.
E-mail: zhanghe@mail.iap.ac.cn|吴保东,中国科学院计算技术研究所,博士研究生,研究方向为高性能计算、并行计算、分布式系统虚拟化。
本文承担工作：大气模式的三维并行剖分框架、自适应滤波、通信避免等优化算法。
Wu Baodong, is a PhD. His main research interests include high-performance computing, parallel computing, and distributed system virtualization.
The tasks in this paper: developments of the 3D parallel decomposition framework of AGCM in CAS-ESM, adaptive filtering, computation-communication overlap and communication-avoiding.
E-mail: wubd.cs@gmail.com|曹杭,中国科学院计算技术研究所博士研究生,主要研究方向为大规模并行计算,异构并行性能优化。
本文承担工作为：CAS-ESM大气环流模式并行计算优化。
Cao Hang, is a PhD student at Institute of Computing Technology, Chinese Academy of Sciences. His main research interests include large-scale parallel computing and heterogeneous parallel computing performance optimization.
The tasks in this paper: paralell omptimization of AGCM in CAS-ESM.
Email: caohang@ict.ac.cn|王天一,中国科学院计算机网络信息中心,博士研究生,主要研究方向为并行计算、软件工程和地球系统建模。
本文承担工作为：耦合集成软件平台开发
Wang Tianyi, is a PhD student at Computer Network Information Center of Chinese Academy of Science. His research interests include parallel computing, software engineering and modeling of Earth system.
The tasks in this paper: development of the platform for coupling and application of Earth System Model.
E-mail: wangty@sccas.cn|郝卉群,中国科学院计算机网络信息中心,工程师,硕士,主要研究方向为并行计算与软件、地球系统模式并行优化。
本文承担工作为：海洋模式并行优化
Hao Huiqun, received his M.S. degree in Computer Science from University of Manchester. He is an engineer in Computer Network Information Center, Chinese Academy of Sciences. His research interests include high performance computing and the parallel optimization of earth system model.
The tasks in this paper: paralell omptimization of OGCM in CAS-ESM.
E-mail: haohq@sccas.cn|朱家文, 中国科学院大气物理研究所,副研究员,主要研究方向为植被动力学模式。
本文承担工作为：植被动力学模式及其与大气模式耦合。
Zhu Jiawen is an asociate professor at Institute of Atmospheric Physics, Chinese Academy of Sciences. His main research interest is dynamic vegetation model.
The tasks in this paper: dynamic vegetation model and its coupling with AGCM.
E-mail: zhujw@mail.iap.ac.cn|袁良,中国科学院计算技术研究所,助理研究员,主要研究方向为并行计算模型,并行算法设计与程序优化。
本文承担工作：大气模式通信优化方法设计。
Yuan Liang, is an assistant professor of SKL of Computer Architecture, Institute of Computing Technology, Chinese Academy of Sciences in Beijing, China.
The tasks in this paper: communication optimization design of AGCM.
E-mail: yuanliang@ict.ac.cn|张明华,中国科学院大气物理研究所客座研究员,主要研究方向为地球系统模式等。
本文承担工作：CAS-ESM的整体设计与研发。
Zhang Minghua is a guest professor of Institute of Atmospheric Physics, Chinese Academy of Sciences. His main research interests are climate model and Earth System Model development and applications.
The tasks in this paper: design and development of CAS-ESM.
基金资助:
国家重点研发计划(2016YFB0200800);中国科学院战略科技先导专项(XDA19020202)

Earth System Model: CAS-ESM

Zhou Guangqing^1,^*(),Zhang Yunquan²,Jiang Jinrong³,Zhang He¹,Wu Baodong²,Cao Hang²,Wang Tianyi³,Hao Huiqun³,Zhu Jiawen¹,Yuan Liang²,Zhang Minghua^1,^*()

1. Institute of Atmospheric Physics, Chinese Academy of Sciences,Beijing 100029, China
2. Institute of Computing Technology, Chinese Academy of Sciences,Beijing 100190, China
3. Computer Network Information Center, Chinese Academy of Sciences,Beijing 100190, China

Received:2020-01-03 Online:2020-02-20 Published:2020-03-28
Contact: Zhou Guangqing,Zhang Minghua

摘要/Abstract

摘要：

【目的】本文介绍了中国科学院地球系统模式CAS-ESM的发展、构成及性能优化,着重介绍了在并行计算优化方面的工作。【方法】基于CAS-ESM1.0,在大气和海洋模式上,就并行剖分、跳点差分算法、并行计算通信开展了一系列的优化研究,显著提升模式的并行加速比和并行效率。开发了用于耦合集成的软件平台,并通过一系列的物理参数化方案的改进,提高了各分量模式的模拟性能,以此形成了CAS-ESM2.0。【结果】新系统在运行效率和模拟精度上都较CAS-ESM1.0有显著提升,实现了我国境内首个全球地表CO₂浓度分布及其季节变化的全耦合模拟。CAS-ESM2.0将参加国际耦合模式比较计划CMIP6的有关试验,并提供有关模拟结果的数据共享。

关键词: 地球系统, 模式, CAS-ESM, 并行计算, CMIP

Abstract:

[Objective] The development and performance optimizations, especially on parallel computations, of the Earth System Model of Chinese Academy of Sciences (CAS-ESM) are introduced in this paper. [Methods] Based on CAS-ESM1.0, a series of computing optimizations are conducted such as three-dimensional parallel decomposition, leap finite-difference algorithm and communication-avoiding method in atmospheric and oceanic component models, showing obvious improvements in parallel computational speed and efficiency of the models. Also, a platform for coupling and application of Earth System Model is developed. In addition, CAS-ESM2.0 is set up after applying parameterization improvements to component models in many aspects. [Results] Compared with CAS-ESM1.0, CAS-ESM2.0 presents a distinct advance not only in computation efficiency but also in climate simulation results. Besides, it is able to reproduce the global surface CO₂ distribution and its seasonal variation by this fully coupled model. CAS-ESM2.0 will take CMIP6 experiments and its simulation data will be opened and shared.

Key words: earth system, model, CAS-ESM, parallel computation, CMIP

周广庆,张云泉,姜金荣,张贺,吴保东,曹杭,王天一,郝卉群,朱家文,袁良,张明华. 地球系统模式CAS-ESM[J]. 数据与计算发展前沿, 2020, 2(1): 38-54.

Zhou Guangqing,Zhang Yunquan,Jiang Jinrong,Zhang He,Wu Baodong,Cao Hang,Wang Tianyi,Hao Huiqun,Zhu Jiawen,Yuan Liang,Zhang Minghua. Earth System Model: CAS-ESM[J]. Frontiers of Data and Computing, 2020, 2(1): 38-54.

图/表 12

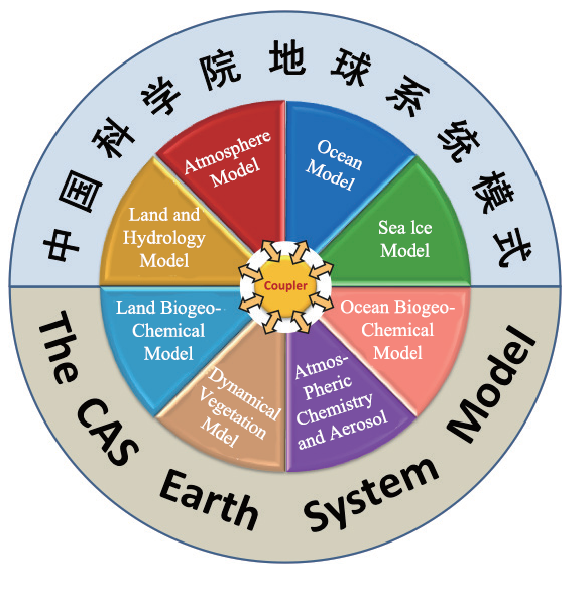

图1

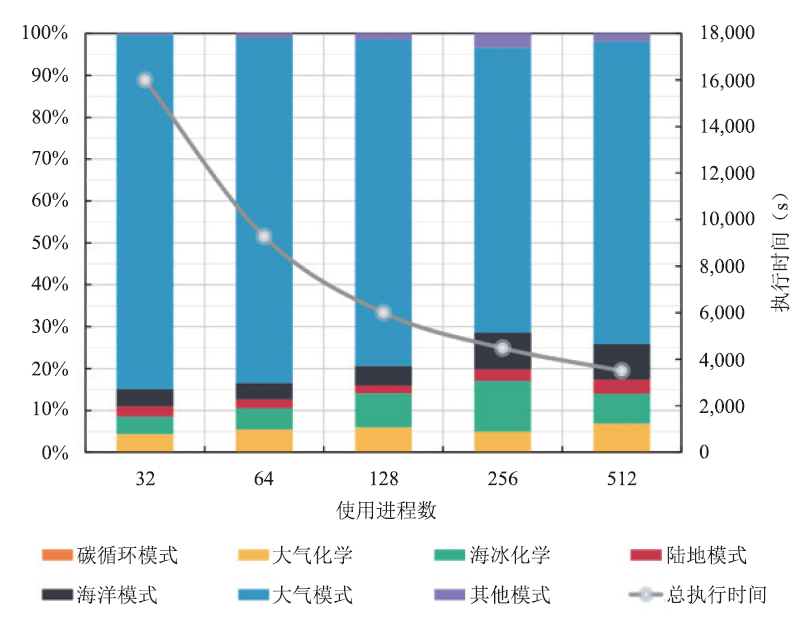

图2

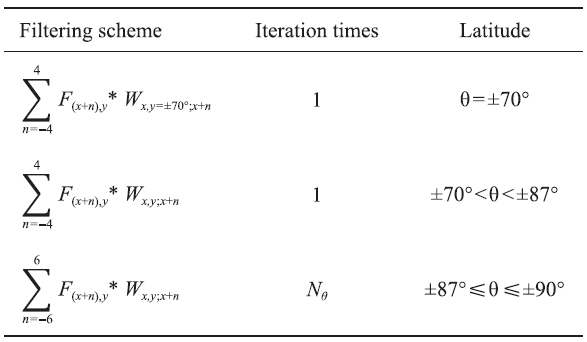

表1

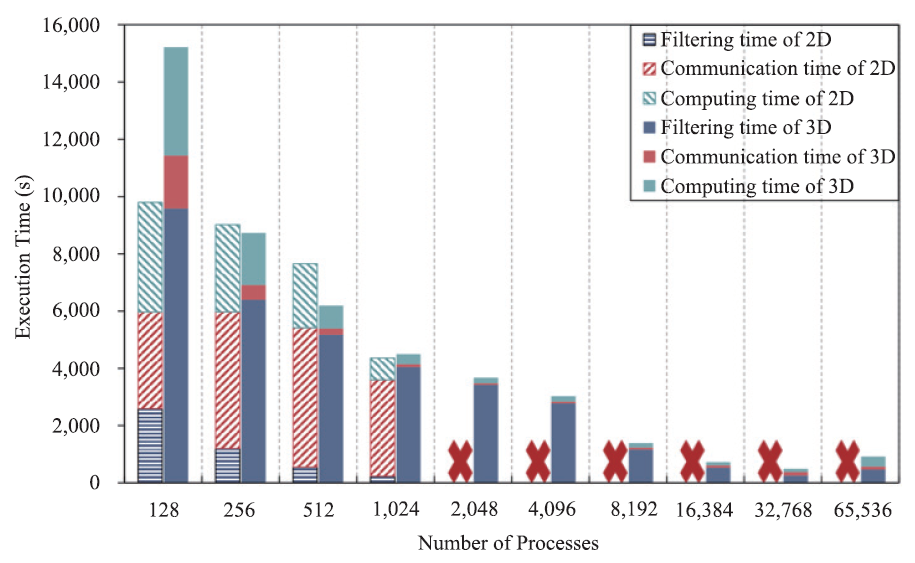

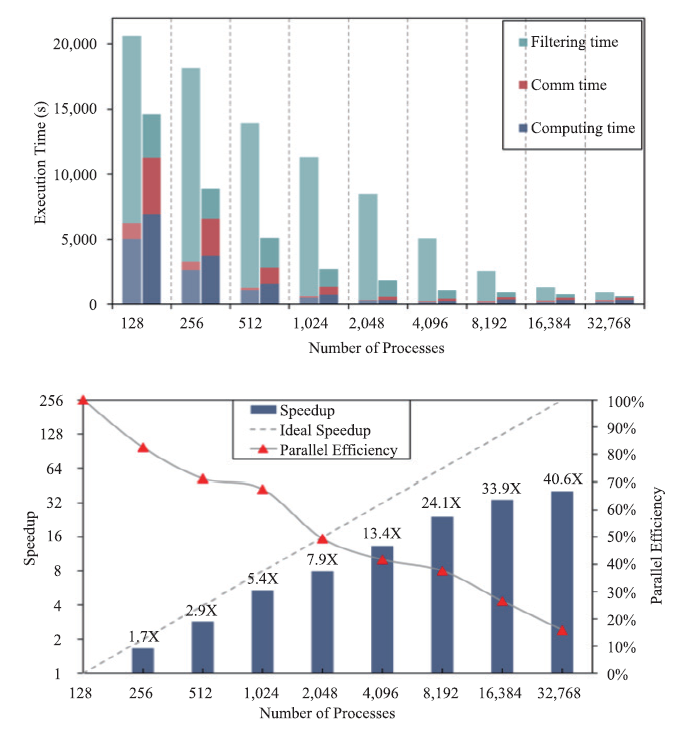

图3

图4

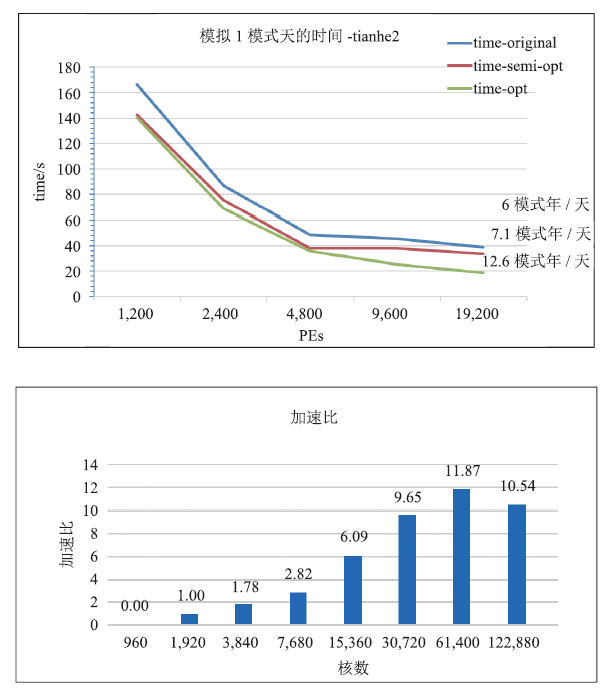

图5

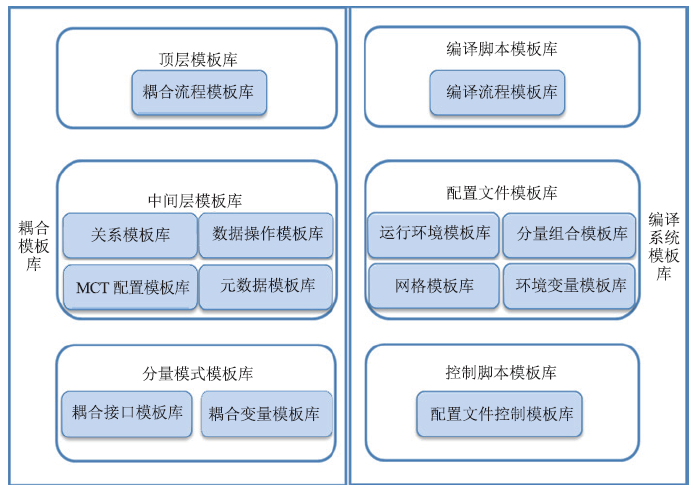

图6

表2

图7

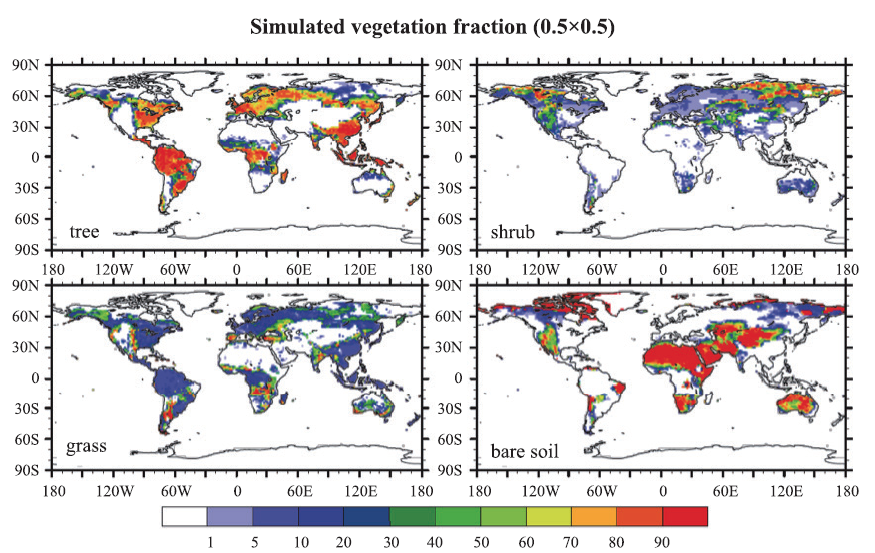

图8

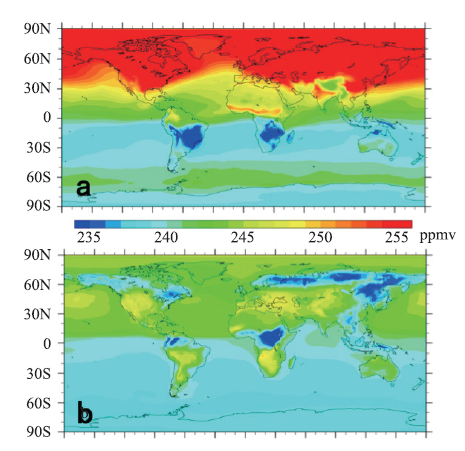

图9

表3

参考文献 40

[1]	梁信忠 . IAP GCM的设计与气候数值模拟[D]. 北京:中国科学院大气物理研究所, 1986 .
[2]	ZENG Q C, ZHANG X H, LIANG X Z, YUAN C G and CHEN S F . Documentation of IAP Two-Level Atmospheric General Circulation Model[R]. TRO44, DOE/ER/60314 -HI, 1989.
[3]	张学洪, 曾庆存 . 大洋环流模式的计算设计[J]. 大气科学, 1988(特刊), 149-165.
[4]	DAI Y J, ZENG Q C . A Land Surface Model (IAP94) for Climate Studies Part I: Formulation and Validation in Off-Line Experiments[J]. Adv. Atmos. Sci, 1997,14(4):433-460.
[5]	ZHANG X, BAO N, YU R C, WANG W . Coupling scheme experiments based on an atmospheric and an oceanic GCM[J]. Chinese J. Atmos. Sci., 1992,16:129-144.
[6]	GUO Y, YU Y, CHEN K, JIN X, ZHANG X . Mean climate state simulated by a coupled ocean- atmosphere general circulation model[J]. Theor. Appl. Climatol., 1996,55:99-112.
[7]	孙泓川, 周广庆, 曾庆存 . IAP第四代大气环流模式的气候系统模式模拟性能评估[J]. 大气科学, 2012,36(2). doi: 10.3878/j.issn.1006-9895.2011.11062.
[8]	曾庆存, 袁重光, 王万秋 , 等. 跨季度气候距平数值预测试验[J]. 大气科学, 1990,14(10):14-25.
[9]	林朝晖, 刘辉志, 谢正辉, 王爱慧 . 陆面水文过程研究进展[J]. 大气科学, 2008,32(4):935-949.
[10]	YUAN X, XIE Z H, ZHENG J, TIAN XJ, YANG Z L . Effects of Water Table Dynamics on Regional Climate: A Case Study over East Asian Monsoon Area[J]. Journal of Geophysical Research: Atmosphere, 2008,113, D21112. doi: 10.1029 /2008JD010180.
[11]	ZENG X D, ZENG X, BARLAGE M . Growing temperate shrubs over arid and semiarid regions in The Community Land Model - Dynamic Global Vegetation Model (CLM-DGVM)[J]. Global Biogeochemical Cycles, 2008, 22, GB3003. doi: 10.1029/2007GB003014.
[12]	Li F, ZENG X D LEVIS S . A process-based fire parameterization of intermediate complexity in a Dynamic Global Vegetation Model[J]. Biogeosciences, 2012,9:2761-2780, doi: 10.5194/bg-9-2761-2012.
[13]	罗淦, 王自发 . 全球环境大气输送模式(GEATM)的建立及其验证[J]. 大气科学, 2006,30(03):504-518.
[14]	LI Y C, XU Y F . Estimate of anthropogenic CO₂ in the Pacific Ocean using two different simulation approaches[J]. Adv. Atmos. Sci., 2012. doi: 10.1007/s00376-012-1170-4.
[15]	ZHANG H, ZHANG M, ZENG Q . Sensitivity of simulated climate to two atmospheric models: Interpretation of differences between dry models and moist models[J]. Mon. Wea. Rev., 2013,141:1558-1576.
[16]	LIU H L, LIN P F, YU Y Q, Zhang X H . The baseline evaluation of LASG/IAP Climate system Ocean Model (LICOM) version 2[J]. Acta Meteor. Sinica, 2012,26(3):318-329.doi: 10.1007/s13351-012-0305-y.
[17]	DAI Y, ZENG X, DICKINSON R E, BAKER I, BONAN G B, BOSILOVICH M G, DENNING A S, DIRMEYER P A, HOUSER P R, NIU G, OLESON K W, SCHLOSSER C A, YANG Z L . The Common Land Model (CLM)[J]. Bull. Am. Meteor. Soc., 2003,84:1013-1023.doi: 10.1175/BAMS-84-8-1013.
[18]	HUNKE E C, LIPSCOMB W H . CICE: The Los Alamos Sea Ice Model. Documentation and Software User's Manual, Version 4.0[R]. T-3 Fluid Dynamics Group, Los Alamos National Laboratory, Tech. Rep. LA-CC-06-012, 2008.
[19]	ZENG X D . Evaluating the dependence of vegetation on climate in an improved dynamic global vegetation model[J]. Adv. Atmos. Sci., 2010,27:977-991. doi: 10.1007/s00376-009-9186-0.
[20]	XU Y F, LI Y C, CHU M . A global ocean biogeochemistry general circulation model and its simulations[J]. Adv. Atmos. Sci., 2013,30(3):922-939. doi: 10.1007/s00376-012-2162-0.
[21]	JI D, WANG L, FENG J, WU Q, CHENG H, ZHANG Q, YANG J, DONG W, DAI Y, GONG D, ZHANG R H, WANG X, LIU J, MOORE J C, CHEN D, ZHOU M . Description and basic evaluation of Beijing Normal University Earth System Model (BNU-ESM) version 1[J]. Geosci. Model Dev.,2014,7:2039-2064..
[22]	CRAIG A P, VERTENSTEIN M, Jacob R . A new flexible coupler for Earth System Modelling developed for CCSM4 and CESM1[J]. Int. J. High Perform. C, 2012,26:31-42.doi: 10.1177/1094342011428141.
[23]	曾庆存, 周广庆, 浦一芬, 陈文, 李荣凤, 廖宏, 林朝晖, 刘辉志, 王必正, 谢正辉, 徐永福, 薛峰, 曾晓东, 张凤 . 地球系统动力学模式及模拟研究[J]. 大气科学, 2008,32(4):653-680.
[24]	曾庆存, 林朝晖 . 地球系统动力学模式和模拟研究的进展[J]. 地球科学进展, 2010,25(1):1-6.
[25]	WANG Y Z, JIANG J R, ZHANG H, XIAO D, WANG L Z, RANJAN R, ZOMAYA A Y . A scalable parallel algorithm for atmospheric general circulation models on a multi-core cluster[J]. Future Generation Computer Systems, 2017,72:1-10.
[26]	XIAO J M, LI S G, WU B D, ZHANG H, LI K, YAO E, ZHANG Y Q, TAN Gv M . Communication-Avoiding for Dynamical Core of Atmospheric General Circulation Model[C]. In Proceedings of the 47th International Conference on Parallel Processing, p. 12. ACM, 2018. (CCF B).
[27]	WU B D, LI S G, ZHANG Y Q , et al. AGCM3D: A Highly Scalable Finite-Difference Dynamical Core of Atmospheric General Circulation Model based on 3D Decomposition[C]. 2018 IEEE 24th International Conference on Parallel and Distributed Systems (ICPADS). IEEE, 2018. ( CCF C).
[28]	CAO H, YUAN L, ZHANG H, WU B D, LI S G, LU P Q, ZHANG Y Q, XU Y J, ZHANG M H. A Highly Efficient Dynamical Core of Atmospheric General Circulation Model based on Leap-Format [C]. IPDPS 2020.
[29]	郝卉群, 姜金荣, 王天一, 刘海龙, 林鹏飞. LICOM: 全球海洋环流模式[C]. HPC China, 2017.
[30]	WANG Y Z, JIANG J R, HE J X . Coupling methods of global climate models and regional climate models[J]. High Technology Letters, 2017,23(1):90-95.
[31]	WANG Y Z, JIANG J R, ZHANG J Q, HE J X, ZHANG H, CHI X B, YUE T X . An efficient parallel algorithm for the coupling of global climate models and regional climate models on a large-scale multi-core cluster[J]. The Journal of Supercomputing, 2018,74(8):3999-4018.
[32]	王天一, 姜金荣, 张贺 , 等. CAS-ESM编译运行脚本文件系统设计与实现[J]. 数值计算与计算机应用, 2016(4):287-298.
[33]	JIANG J R, WANG T Y, CHI X B . SC-ESAP: A Parallel Application Platform for Earth System Model[J]. Procedia Computer Science (ICCS 2016. The International Conference on Computational Science), 2016,80:1-12.
[34]	LI Y, ZHANG M . The Role of Shallow Convection over the Tibetan Plateau[J]. Journal of Climate, 2017,30(15):5791-5803.
[35]	XIE X, ZHANG H, LIU X D, PENG Y R, LIU Y G . Role of microphysical parameterizations with droplet relative dispersion in IAP AGCM 4.1[J]. Adv. Atmos. Sci., 2018,35:248-259.
[36]	JIN J B, ZENG Q C, WU L, LIU H L, ZHANG M H . Formulation of A New Ocean Salinity Boundary Condition and Its Impact on the Simulated Climate in an Oceanic General Circulation Model[J]. SCIENCE CHINA: Earth Science, 2017,60(3):491-500.
[37]	SONG M R, LIU J P . The role of diminishing Arctic sea ice in increased winter snowfall over northern high-latitude continents in a warming environment[J]. Acta Oceanologica Sinica, 2017,36(8):34-41.
[38]	WEI Y, CHEN X S, CHEN H S, LI J, WANG Z F, YANG W Y, GE B Z, DU H Y, HAO J Q, WANG W, LI J J, SUN Y L, HUANG H L . IAP-AACM v1.0:Global to regional evaluation of the atmospheric chemistry model in CAS-ESM[J]. Atmospheric Chemistry and Physics Discussions, 2018: 1-56. doi: 10.5194/acp-2018-1007.
[39]	CHEN J, LIU Y, ZHANG M, PENG Y . Height dependency of aerosol-cloud interaction regimes[J]. Journal of Geophysical Research: Atmospheres, 2018, 123.
[40]	ZHU J W, ZENG X D, ZHANG M H, DAI Y J, JI D Y, LI F, ZHANG Q, ZHANG H, SONG X . Evaluation of the new dynamic global vegetation model in CAS-ESM[J]. Adv. Atmos. Sci., 2018, 35(6): 659-670.

配置文件	说明
common.xml	总控文件,与编译系统共享,配置分量模式名称和类型
conf_ccsm_comp.xml	顶层控制文件,配置耦合顺序,和其他分量模式自定义信息
conf_mapping.xml	配置各分量模式之间耦合关系等信息
conf_map.xml	配置分量模式与耦合器之间的耦合信息
con_merge.xml	配置耦合数据传递的信息
conf_shr.xml	共享分量模式耦合数据
conf_seq.xml	注册分量模式耦合变量
ccc_conf.xml	配置耦合变量和耦合接口

No.	Short name	Long name of MIP	CAS-ESM
1	AerChemMIP	Aerosols and Chemistry Model Intercomparison Project	参加
2	C4MIP	Coupled Climate Carbon Cycle Model Intercomparison Project	参加
3	CFMIP	Cloud Feedback Model Intercomparison Project	拟参加
4	DAMIP	Detection and Attribution Model Intercomparison Project	参加
5	DCPP	Decadal Climate Prediction Project	拟参加
6	FAFMIP	Flux‐Anomaly‐Forced Model Intercomparison Project	拟参加
7	GeoMIP	Geoengineering Model Intercomparison Project	拟参加
8	GMMIP	Global Monsoons Model Intercomparison Project	参加
9	HighResMIPI	High Resolution Model Intercomparison Project	不参加
10	ISMIP6	Ice Sheet Model Intercomparison Project for CMIP6	拟参加
11	LS3MIP	Land Surface, Snow and Soil Moisture	参加
12	LUMIP	Land‐Use Model Intercomparison Project	参加
13	OMIP	Ocean Model Intercomparison Project	拟参加
14	PMIP	Palaeoclimate Modelling Intercomparison Project	拟参加
15	RFMIP	Radiative Forcing Model Intercomparison Project	不参加
16	ScenarioMIP	Scenario Model Intercomparison Project	参加
17	VolMIP	Volcanic Forcings Model Intercomparison Project	拟参加
18	CORDEX*	Coordinated Regional Climate Downscaling Experiment	拟参加
19	DynVar*	Dynamics and Variability of the Stratosphere‐Troposphere System	不参加
20	SIMPI*	Sea‐Ice Model Intercomparison Project	不参加
21	VIACS AB*	VIACS Advisory Board for CMIP6	不参加
