Research on the Accuracy of Dental Implant Robot Implantation in Different Tooth Positions

doi:10.11871/jfdc.issn.2096-742X.2024.03.005

Abstract

Abstract:

[Objective] This study investigates the precision of robotic assistance in dental implant surgeries across various dental arch locations. [Methods] The study encompassed five patients receiving a total of sixteen implants. Dental implant placements were conducted following the standardized protocol for robotic surgery. The postoperative analysis involved comparing the actual implant sites to the preoperatively designed locations. [Results] Implants were evaluated based on their position within the maxilla or mandible, anterior or posterior segments, and left or right sides. Deviations were measured at the implantation point—including total, horizontal, and vertical discrepancy—as well as the root apex point, alongside angle discrepancy. Statistical analysis revealed significance only in the horizontal deviations at the anterior and posterior implantation points, with no significant differences observed in other measured parameters. [Conclusions] Robotic assistance in dental implant surgery demonstrates high accuracy across different dental regions, leading to clinically satisfactory outcomes.

Key words: dental implant robot, robot-assisted surgery, dental implant, accuracy analysis

LIU Qian, LYU Jing, LI Ying, LIU Bing, CAI Chengxiong, DENG Tianzheng. Research on the Accuracy of Dental Implant Robot Implantation in Different Tooth Positions[J]. Frontiers of Data and Computing, 2024, 6(3): 50-57, https://cstr.cn/32002.14.jfdc.CN10-1649/TP.2024.03.005.

Figures/Tables 6

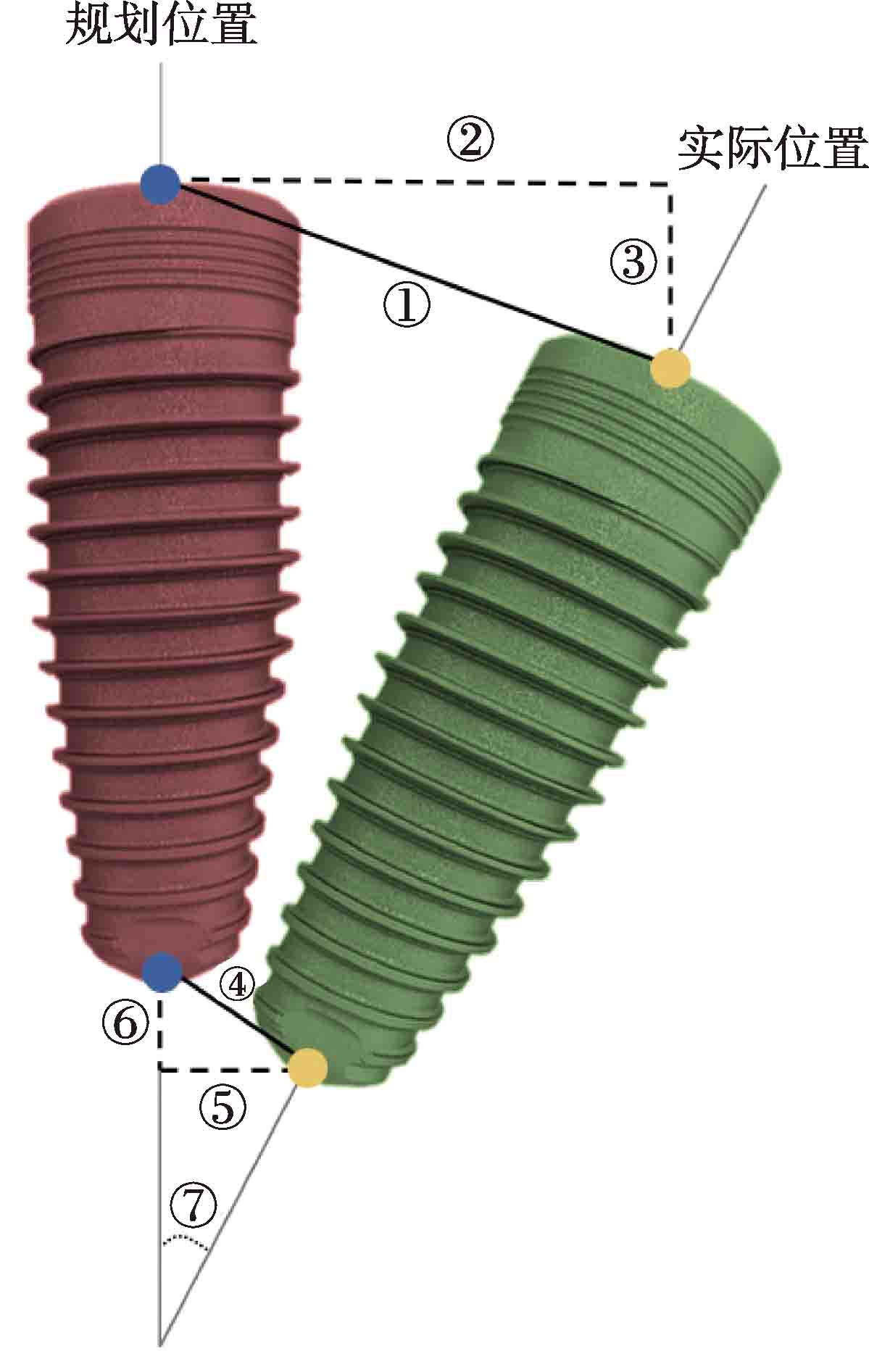

Fig.1

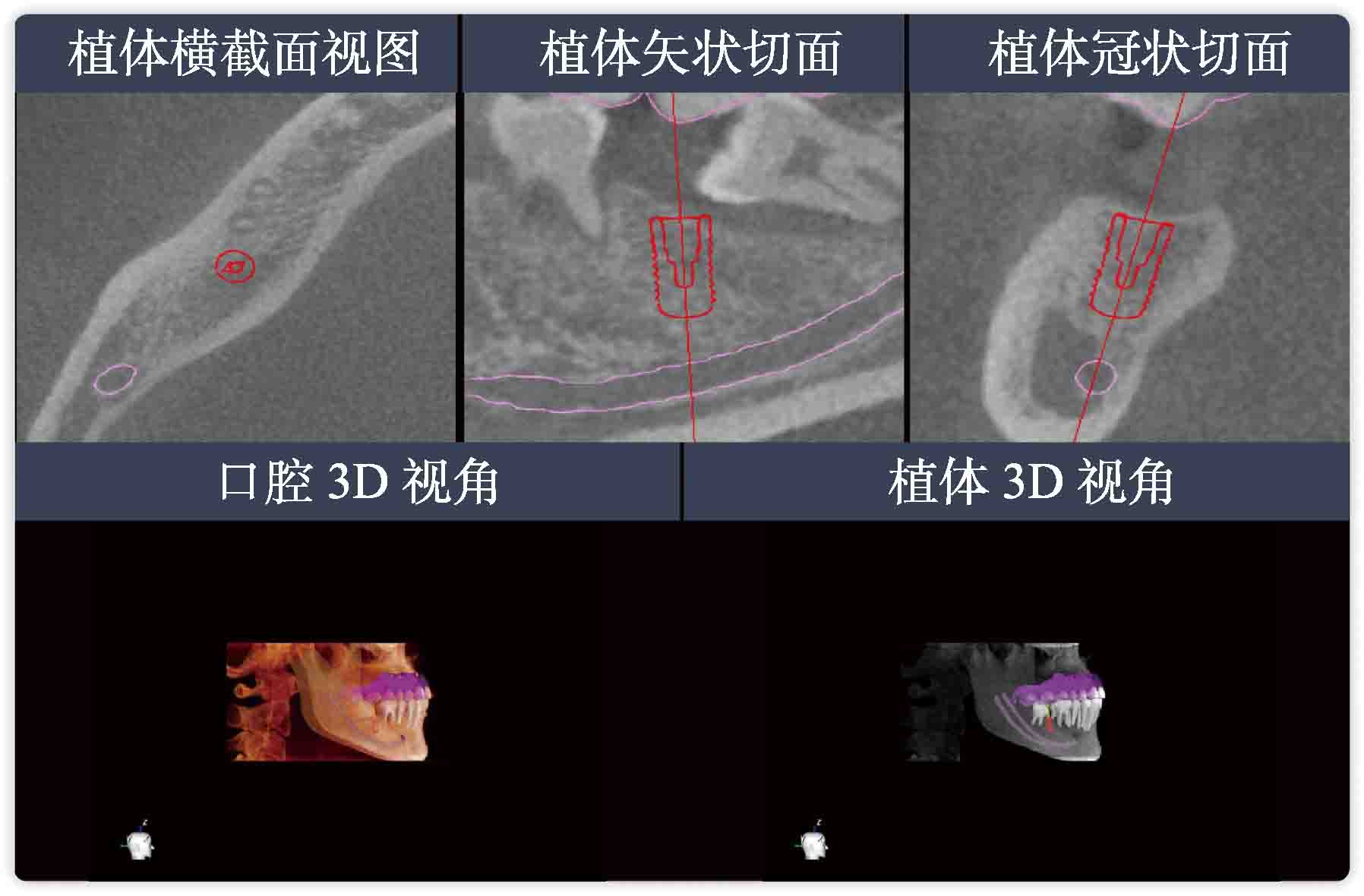

Fig.2

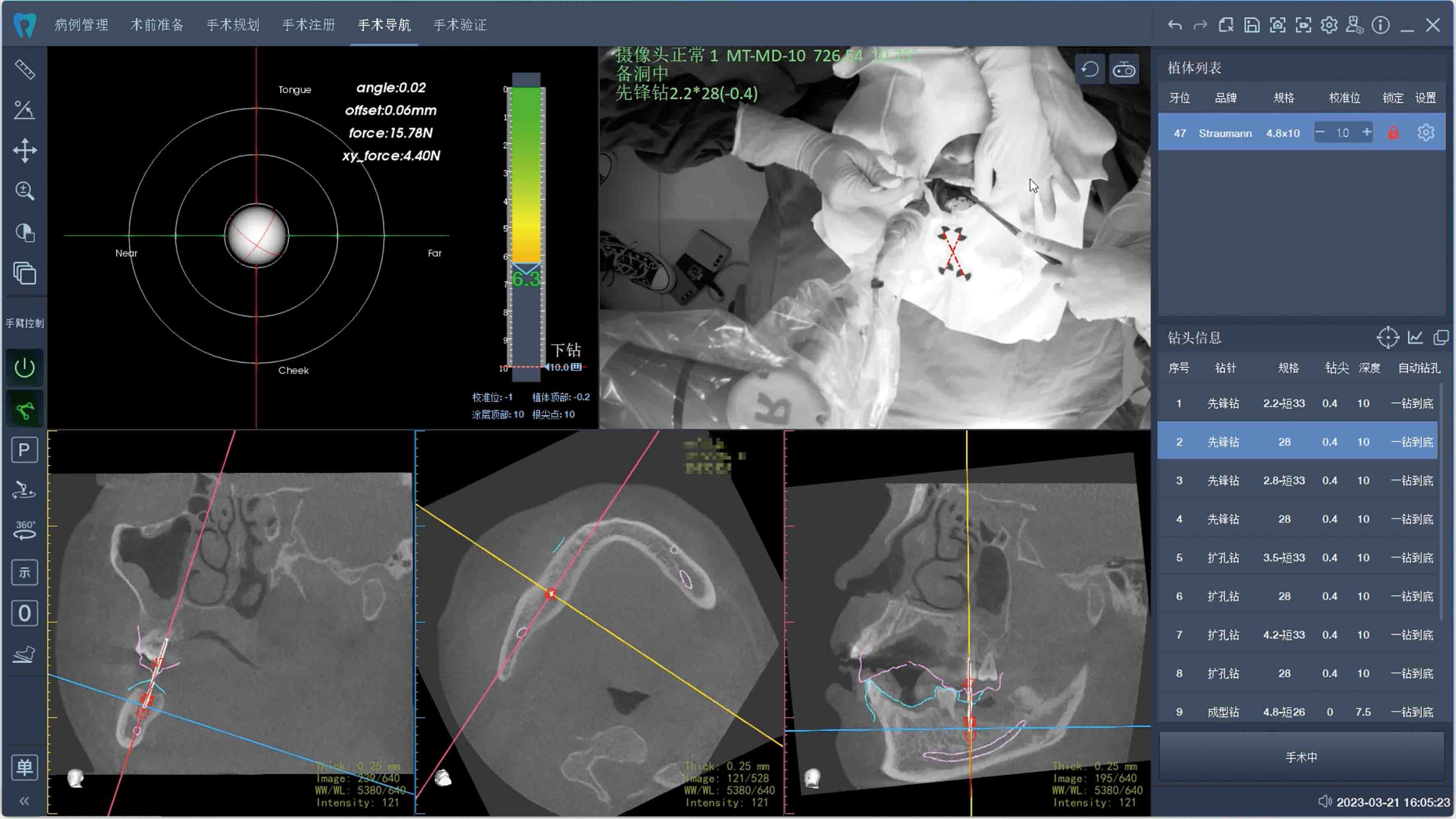

Fig.3

Table 1

Table 2

Table 3

References 20

[1]	BUSER D, BORNSTEIN M M, WEBER H P, et al. Early implant placement with simultaneous guided bone regeneration following single-tooth extraction in the esthetic zone: a cross-sectional, retrospective study in 45 subjects with a 2- to 4-year follow-up[J]. Journal of Periodontology, 2008, 79(9): 1773-1781. doi: 10.1902/jop.2008.080071 pmid: 18771381
[2]	刘峰. 数字化引导技术在口腔美学种植修复中的应用[J]. 中华口腔医学杂志, 2020, 55(5): 357-360.
[3]	宿玉成. 浅谈数字化口腔种植治疗[J]. 中华口腔医学杂志, 2016, 51(4): 194-200.
[4]	BOLDING S L, REEBYE U N. Accuracy of haptic robotic guidance of dental implant surgery for completely edentulous arches[J]. The Journal of prosthetic dentistry, 2022, 128(4): 639-647.
[5]	王俊成, 时权, 刘洪臣. 人工智能在口腔种植中的应用[J]. 口腔颌面修复学杂志, 2022, 23(2): 81-85.
[6]	CAO Z, QIN C, FAN S, et al. Pilot study of a surgical robot system for zygomatic implant placement[J]. Medical Engineering & Physics, 2020, 75: 72-78.
[7]	YANG S, CHEN J, LI A, et al. Autonomous Robotic Surgery for Immediately Loaded Implant-Supported Maxillary Full-Arch Prosthesis: A Case Report[J/OL]. Journal of Clinical Medicine, 2022, 11(21): https://doi.org/10.3390/jcm11216594.
[8]	陈江. 机器人在口腔种植领域的应用[J]. 中国口腔种植学杂志, 2022, 27(5): 274-279.
[9]	陈江, 宿玉成, 沈国芳. 口腔种植机器人临床应用的专家共识(第一版)[J]. 中国口腔种植学杂志, 2023, 28(3): 134-139.
[10]	李艳琴, 陈江. 机器人系统辅助口腔种植手术精度的Meta分析[J]. 中国口腔种植学杂志, 2023, 28(3): 186-192.
[11]	YANG S, CHEN J, LI A, et al. Accuracy of autonomous robotic surgery for single-tooth implant placement: A case series[J/OL]. Journal of Dentistry, 2023, 132: https://doi.org/10.1016/j.jdent.2023.104451.
[12]	吴煜, 邹士琦, 王霄. 口腔种植机器人在口腔种植手术中的初步应用[J]. 中国微创外科杂志, 2021, 21(9): 5.
[13]	姜雨汐, 孙仕晨, 万林子, 等. 口腔种植机器人在即刻种植中的精度研究[J]. 中国口腔种植学杂志, 2023, 28(3): 165-171.
[14]	ELGARBA B M, VAN AELST S, SWAITY A, et al. Deep learning-based segmentation of dental implants on cone-beam computed tomography images: A validation study[J/OL]. Journal of Dentistry, 2023, 137: https://doi.org/10.1016/j.jdent.2023.104639
[15]	CHOI H, JEON K J, KIM Y H, et al. Deep learning-based fully automatic segmentation of the maxillary sinus on cone-beam computed tomographic images[J/OL]. Scientific Reports, 2022, 12(1): https://doi.org/10.1038/s41598-022-18436-w.
[16]	LEE J H, KIM Y T, LEE J B, et al. A Performance Comparison between Automated Deep Learning and Dental Professionals in Classification of Dental Implant Systems from Dental Imaging: A Multi-Center Study[J/OL]. Diagnostics (Basel), 2020, 10(11): https://doi.org/10.3390/diagnostics10110910.
[17]	LEE J H, KIM Y T, LEE J B, et al. Deep learning improves implant classification by dental professionals: a multi-center evaluation of accuracy and efficiency[J]. Journal of Periodontal and Implant Science, 2022, 52(3): 220-229.
[18]	PARK W, SCHWENDICKE F, KROIS J, et al. Identification of Dental Implant Systems Using a Large-Scale Multicenter Data Set[J]. Journal of Dental Research, 2023, 102(7): 727-733.
[19]	KURT BAYRAKDAR S, ORHAN K, BAYRAKDAR I S, et al. A deep learning approach for dental implant planning in cone-beam computed tomography images[J/OL]. BMC Medical Imaging, 2021, 21(1): https://doi.org/10.1186/s12880-021-00618-z.
[20]	XIAO Y, LIANG Q, ZHOU L, et al. Construction of a new automatic grading system for jaw bone mineral density level based on deep learning using cone beam computed tomography[J/OL]. Scientific Reports, 2022, 12(1): https://doi.org/10.1038/s41598-022-16074-w.

	植入点偏差（mm）			根尖点偏差（mm）			角度偏差（°）
	总偏差	横向偏差	深度偏差	总偏差	横向偏差	深度偏差	角度偏差（°）
上颌牙	1.10±0.82	0.28±0.20	1.01±0.86	1.13±0.79	0.36±0.14	1.00±0.86	1.49±0.89
下颌牙	0.52±0.14	0.32±0.19	0.37±0.13	0.58±0.25	0.42±0.28	0.37±0.13	1.15±0.69
P值	0.086	0.714	0.074	0.099	0.574	0.076	0.418

	植入点偏差（mm）			根尖点偏差（mm）			角度偏差（°）
	总偏差	横向偏差	深度偏差	总偏差	横向偏差	深度偏差	角度偏差（°）
前牙区	0.95±0.68	0.16±0.11	0.93±0.68	1.00±0.66	0.31±0.16	0.92±0.68	1.10±0.70
后牙区	0.79±0.70	0.38±0.19	0.61±0.74	0.82±0.69	0.44±0.22	0.61±0.74	1.49±0.86
P值	0.65	0.019*	0.41	0.61	0.23	0.41	0.36

	植入点偏差（mm）			根尖点偏差（mm）			角度偏差（°）
	总偏差	横向偏差	深度偏差	总偏差	横向偏差	深度偏差	角度偏差（°）
右侧	0.86±0.72	0.29±0.18	0.75±0.77	0.95±0.70	0.45±0.21	0.75±0.77	1.58±0.85
左侧	0.82±0.66	0.31±0.23	0.70±0.69	0.81±0.65	0.31±0.18	0.70±0.69	1.04±0.67
P值	0.913	0.886	0.904	0.708	0.158	0.904	0.185
