Multi-frequency and Multi-GNSS PPP-RTK for Kinematic Platform Positioning

doi:10.11871/jfdc.issn.2096-742X.2022.04.006

Abstract

Abstract:

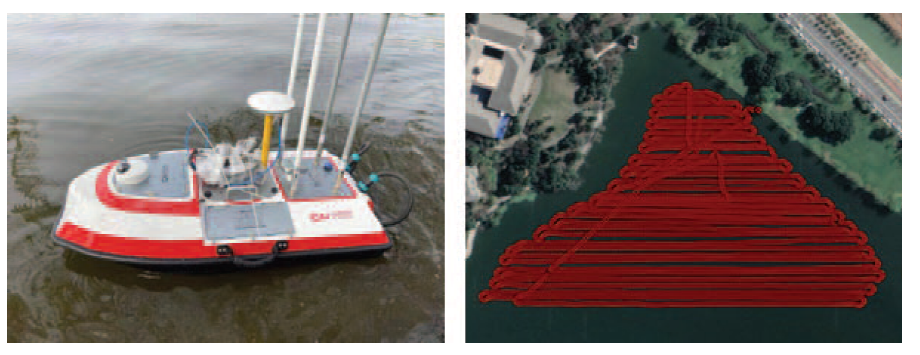

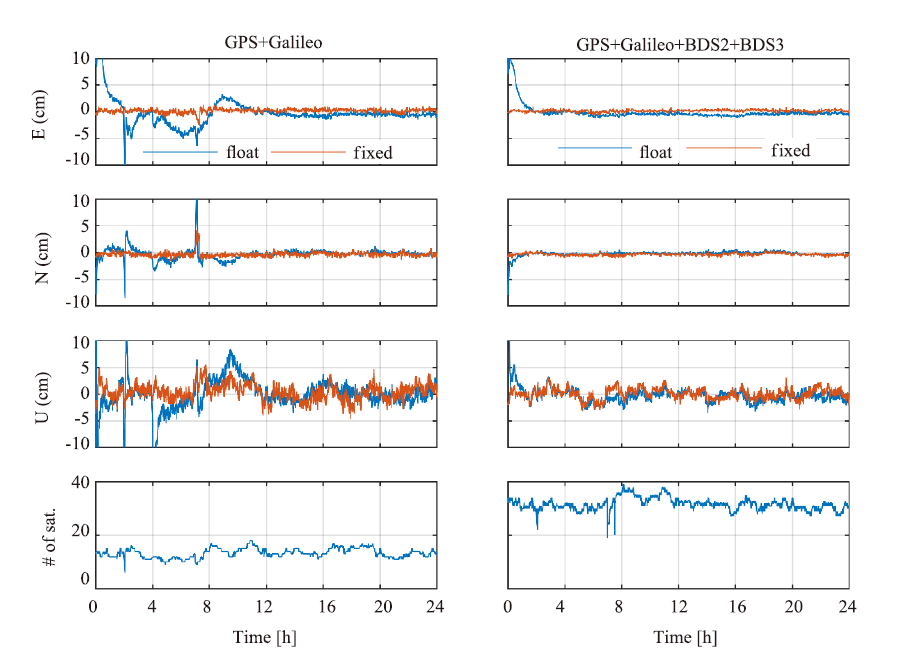

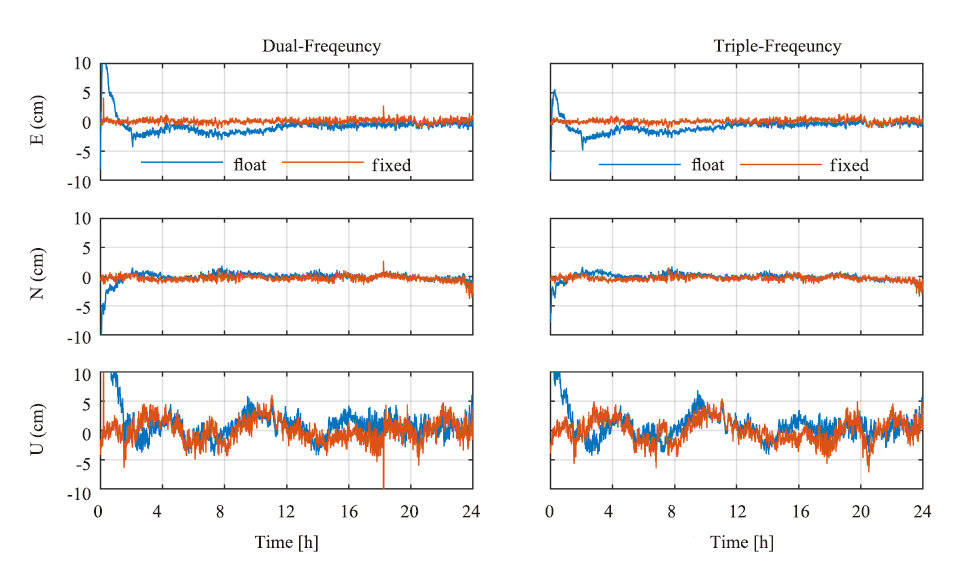

[Objective] Integer ambiguity resolution-enabled precise point positioning, also known as PPP-RTK, is the state-of-the-art positioning technique using global navigation satellite systems (GNSSs). Compared with static PPP-RTK that has been comprehensively studied, investigations on kinematic PPP-RTK are rather limited. [Methods] This work formulates a multi-frequency and multi-GNSS PPP-RTK model and analyzes its performances in both simulated kinematic and real kinematic modes. We also investigate the advantages of triple-frequency positioning over dual-frequency positioning and demonstrate the benefits of multi-GNSS. [Results] For the simulated kinematic mode, the results show that triple-frequency BDS2+Galileo positioning reduces, compared to the dual-frequency case, the time-to-first-fix (TTFF) from 60 s to 30 s, improving the ambiguity success rate (ASR) from 99.82% to 100%, and the positioning accuracy by 5%. Quad-system observations combining GPS+BDS2+BDS3+Galileo further improves the accuracy by 30%. In the case of kinematic boat positioning, the triple-frequency Galileo observations also contribute to positioning, as the TTFF is decreased from 125 s to 100 s, the ASR is increased from 81.9% to 92.08%, and the positioning accuracy is improved by 15%. The benefits of multi-GNSS are remarkable as the BDS2+BDS3+Galileo triple-system positioning reduces the TTFF to 5 s, improves the ASR to 99.72%, and achieves the positioning accuracy of better than 3 cm. Regarding to the kinematic tractor positioning, the improvement benefited from the triple frequency is similar to that of kinematic boat positioning. The best positioning performance is achieved by GPS+Galileo+BDS2+BDS3 quad-system positioning. The corresponding TTFF is 4 s, the ASR is 99.89%, and the positioning accuracy is better than 3 cm.

Key words: global navigation satellite system (GNSS), multi-frequency, multi-GNSS, integer ambiguity resolution-enabled precise point positioning (PPP-RTK), kinematic positioning

HOU Pengyu,XU Li,KE Cheng,Khodabandeh Amir. Multi-frequency and Multi-GNSS PPP-RTK for Kinematic Platform Positioning[J]. Frontiers of Data and Computing, 2022, 4(4): 55-69, https://cstr.cn/32002.14.jfdc.CN10-1649/TP.2022.04.006.

Figures/Tables 12

Fig.1

Fig.2

Fig. 3

Table 1

Fig.4

Fig.5

Fig.6

Table 2

Fig.7

Fig.8

Fig.9

Table 3

References 22

[1]	Morton Y J, van Diggelen F, Spilker Jr J J, et al. Position, navigation, and timing technologies in the 21st century: integrated satellite navigation, sensor systems, and civil applications[M]. John Wiley & Sons, 2021: 3-5.
[2]	Yang Y, Yang C, Ren X. PNT intelligent services[J]. Acta Geodaetica et Cartographica Sinica, 2021, 50(8): 1006-1012.
[3]	Yang Y, Liu L, Li J, et al. Featured services and perfor-mance of BDS-3[J]. Science Bulletin, 2021, 66(20): 2135-2143. doi: 10.1016/j.scib.2021.06.013
[4]	Yang Y, Mao Y, Sun B. Basic performance and future developments of BeiDou global navigation satellite system[J]. Satellite Navigation, 2020, 1(1): 1-8. doi: 10.1186/s43020-019-0006-0
[5]	Montenbruck O, Steigenberger P, Prange L, et al. The Multi-GNSS Experiment (MGEX) of the International GNSS Service (IGS)-achievements, prospects and challenges[J]. Advances in space research, 2017, 59(7): 1671-1697. doi: 10.1016/j.asr.2017.01.011
[6]	Odolinski R, Teunissen P J G, Zhang B. Multi-GNSS processing, positioning and applications[J]. Journal of Spatial Science, 2020, 65(1): 3-5. doi: 10.1080/14498596.2020.1687170
[7]	Liu T, Yuan Y, Zhang B, et al. Multi-GNSS precise point positioning (MGPPP) using raw observations[J]. Journal of geodesy, 2017, 91(3): 253-268. doi: 10.1007/s00190-016-0960-3
[8]	Odolinski R, Teunissen P J G. Best integer equivariant estimation: Performance analysis using real data collected by low-cost, single-and dual-frequency, multi-GNSS receivers for short-to long-baseline RTK positioning[J]. Journal of Geodesy, 2020, 94(9): 1-17. doi: 10.1007/s00190-019-01332-z
[9]	Teunissen P J G, Odolinski R, Odijk D. Instantaneous BeiDou+ GPS RTK positioning with high cut-off ele-vation angles[J]. Journal of geodesy, 2014, 88(4): 335-350. doi: 10.1007/s00190-013-0686-4
[10]	Wabbena G, Schmitz M, Bagge A. PPP-RTK: precise point positioning using state-space representation in RTK networks[C]// Proceedings of the 18th international technical meeting of the satellite division of the Institute of navigation (ION GNSS 2005), 2005: 2584-2594.
[11]	Khodabandeh A. Single-station PPP-RTK: correction latency and ambiguity resolution performance[J]. Journal of Geodesy, 2021, 95(4): 1-24. doi: 10.1007/s00190-020-01448-7
[12]	Teunissen P J G, Khodabandeh A. Review and principles of PPP-RTK methods[J]. Journal of Geodesy, 2015, 89(3): 217-240. doi: 10.1007/s00190-014-0771-3
[13]	Ge M, Gendt G, Rothacher M, et al. Resolution of GPS carrier-phase ambiguities in precise point positioning (PPP) with daily observations[J]. Journal of geodesy, 2008, 82(7): 389-399. doi: 10.1007/s00190-007-0187-4
[14]	Katsigianni G, Loyer S, Perosanz F. PPP and PPP-AR kinematic post-processed performance of GPS-only, Galileo-only and multi-GNSS[J]. Remote sensing, 2019, 11(21): 2477. doi: 10.3390/rs11212477
[15]	Khodabandeh A, Teunissen P J G. PPP-RTK and inter-system biases: the ISB look-up table as a means to supp-ort multi-system PPP-RTK[J]. Journal of Geodesy, 2016, 90(9): 837-851. doi: 10.1007/s00190-016-0914-9
[16]	Du Z, Chai H, Xiao G, et al. Analyzing the contributions of multi-GNSS and INS to the PPP-AR outage re-fixing[J]. GPS Solutions, 2021, 25(2): 1-12. doi: 10.1007/s10291-020-01037-3
[17]	Teunissen P J G. Generalized inverses, adjustment, the datum problem and S-transformations[M]. Springer, 1985: 22-45.
[18]	Teunissen P J G, Khodabandeh A. A mean-squared-error condition for weighting ionospheric delays in GNSS baselines[J]. Journal of Geodesy, 2021, 95(11): 1-12. doi: 10.1007/s00190-020-01448-7
[19]	Zha J, Zhang B, Liu T, et al. Ionosphere-weighted undi-fferenced and uncombined PPP-RTK: theoretical models and experimental results[J]. GPS Solutions, 2021, 25(4): 1-12. doi: 10.1007/s10291-020-01037-3
[20]	Odijk D, Zhang B, Khodabandeh A, et al. On the esti-mability of parameters in undifferenced, uncombined GNSS network and PPP-RTK user models by means of S-system theory[J]. Journal of Geodesy, 2016, 90(1): 15-44. doi: 10.1007/s00190-015-0854-9
[21]	Hou P, Zhang B, Yuan Y. Combined GPS+ BDS inst-antaneous single- and dual-frequency RTK positioning: Stochastic modelling and performance assessment[J]. Journal of Spatial Science, 2021, 66(1): 3-26. doi: 10.1080/14498596.2018.1558117
[22]	Teunissen P J G. The least-squares ambiguity decorre-lation adjustment: a method for fast GPS integer ambig-uity estimation[J]. Journal of Geodesy, 1995, 70(1-2):65-82. doi: 10.1007/BF00863419

Observations	TTFF (s)	ASR (%)	E/N/U RMS (cm)
BDS2+Galileo (Dual-frequency)	60	99.82	0.41/0.56/1.98
BDS2+Galileo (Triple-frequency)	30	100.00	0.40/0.52/1.90
GPS+Galileo	30	100.00	0.40/0.54/1.55
GPS+Galileo+BDS2+BDS3	30	100.00	0.26/0.40/1.01

Observations	TTFF (s)	ASR (%)	E/N/U RMS (cm)

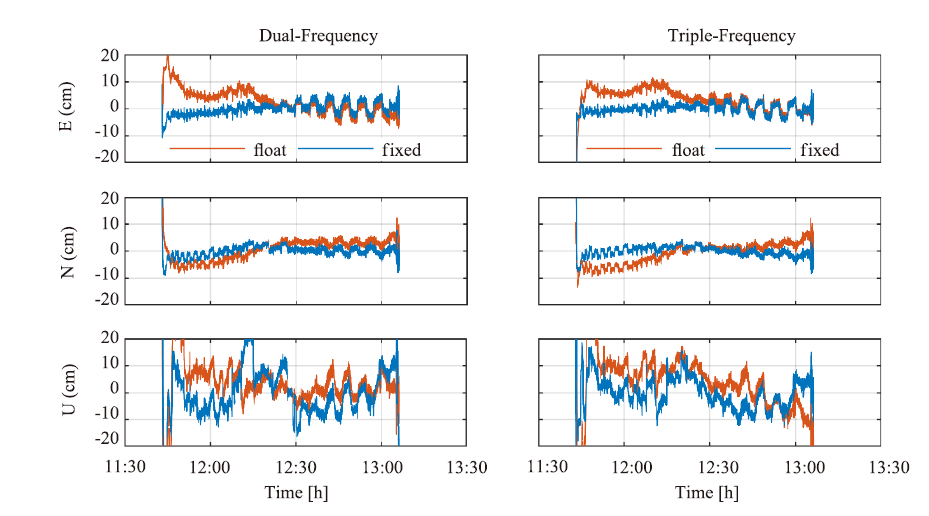

Galileo (Dual-frequency)	125	81.90	2.14/2.63/5.70
Galileo (Triple-frequency)	100	92.08	1.76/2.35/4.93

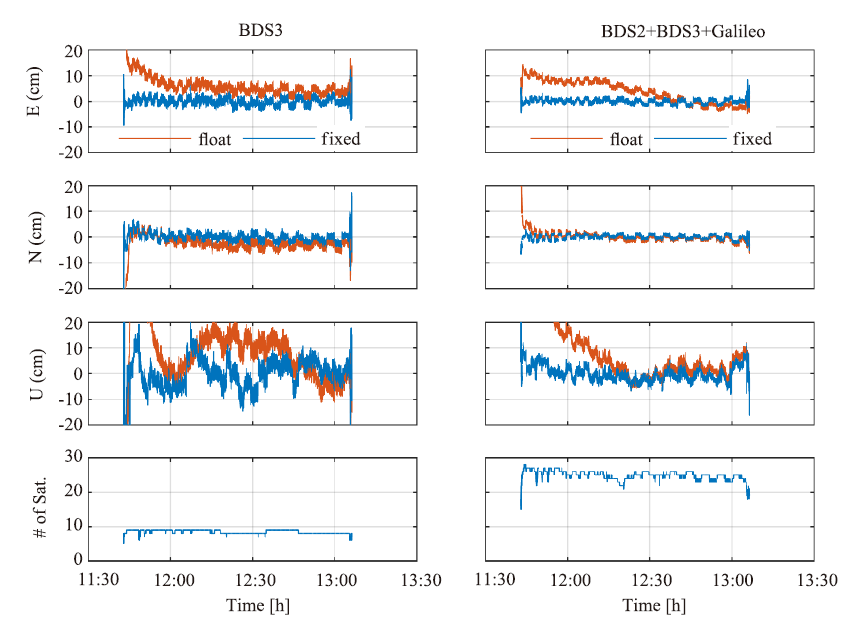

BDS3	144	92.26	1.47/1.60/4.50
BDS2+BDS3+Galileo	5	99.72	0.98/0.95/2.81

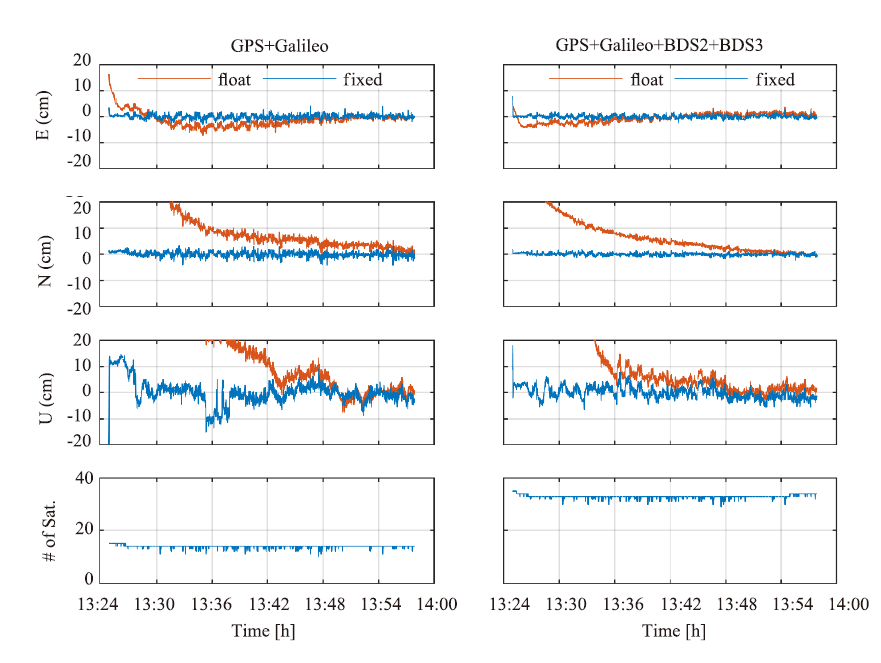

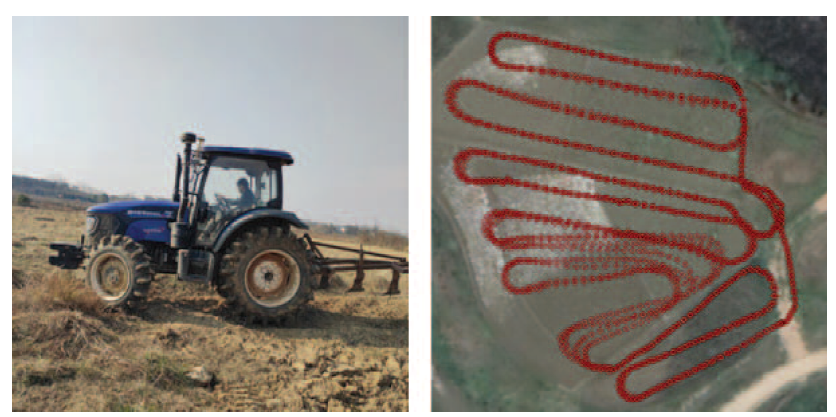

Observations	TTFF (s)	ASR (%)	E/N/U RMS (cm)

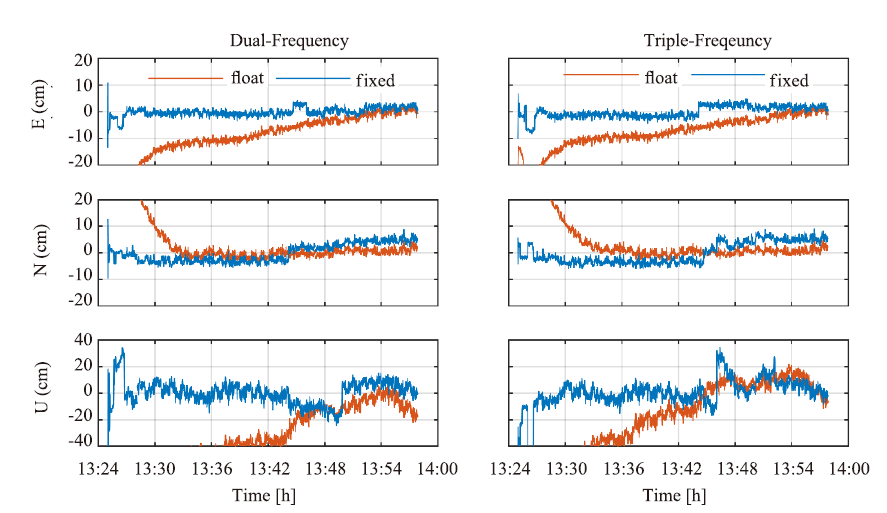

BDS2 (Dual-frequency)	136	77.94	1.76/3.99/5.13
BDS2 (Triple-frequency)	121	80.88	1.34/3.51/4.91
GPS+Galileo	101	92.21	0.85/0.95/3.20
GPS+Galileo+BDS2+BDS3	4	99.89	0.64/0.49/2.22
